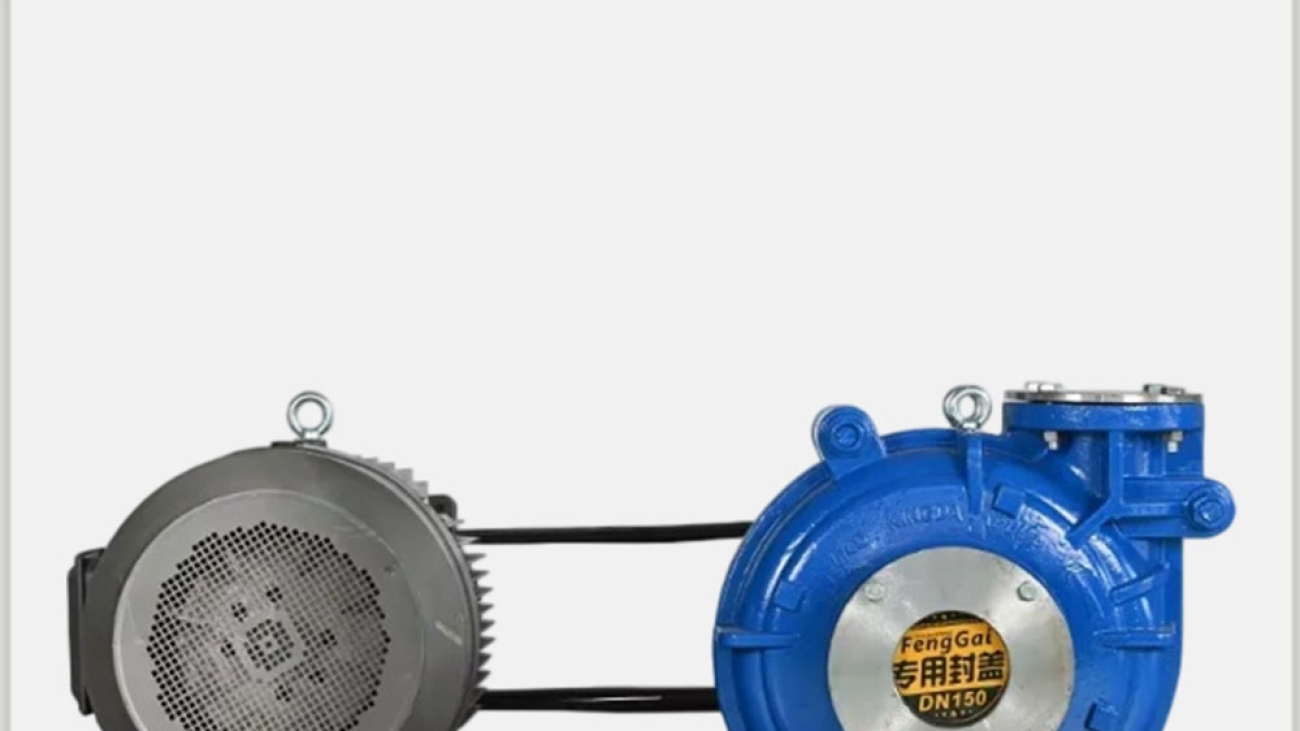

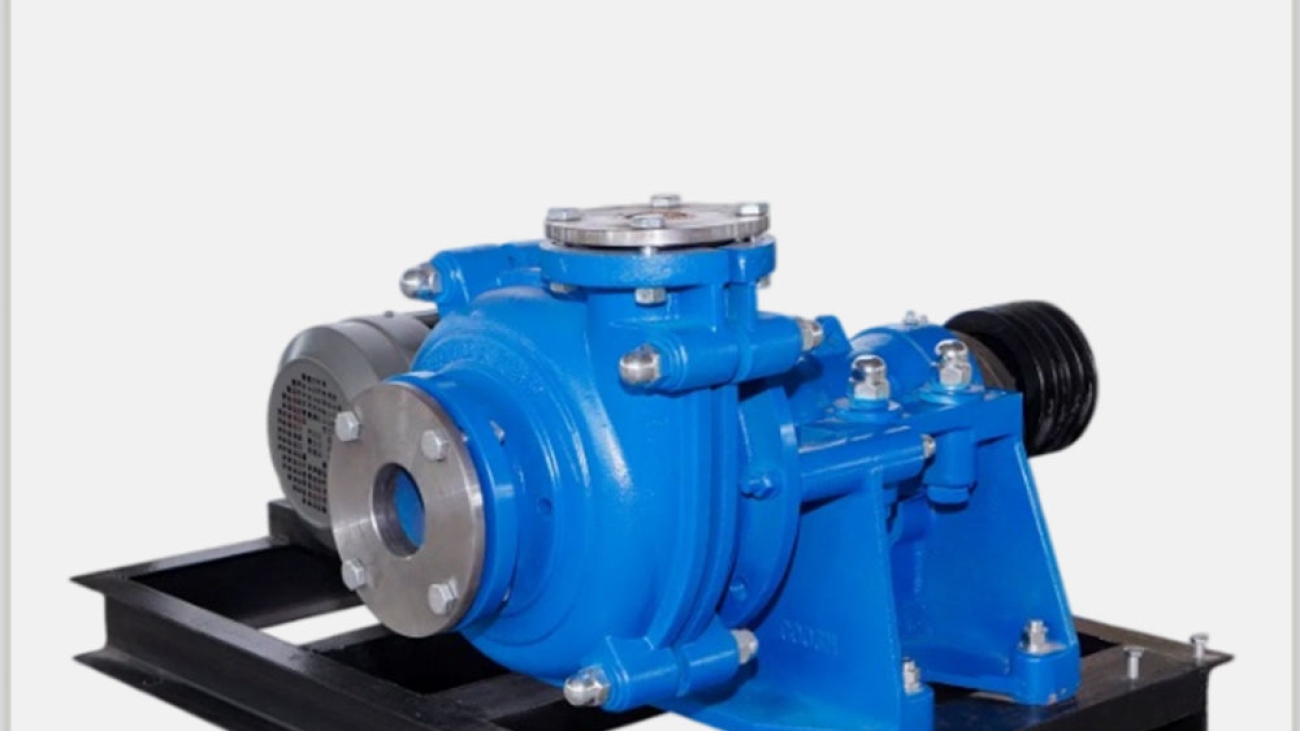

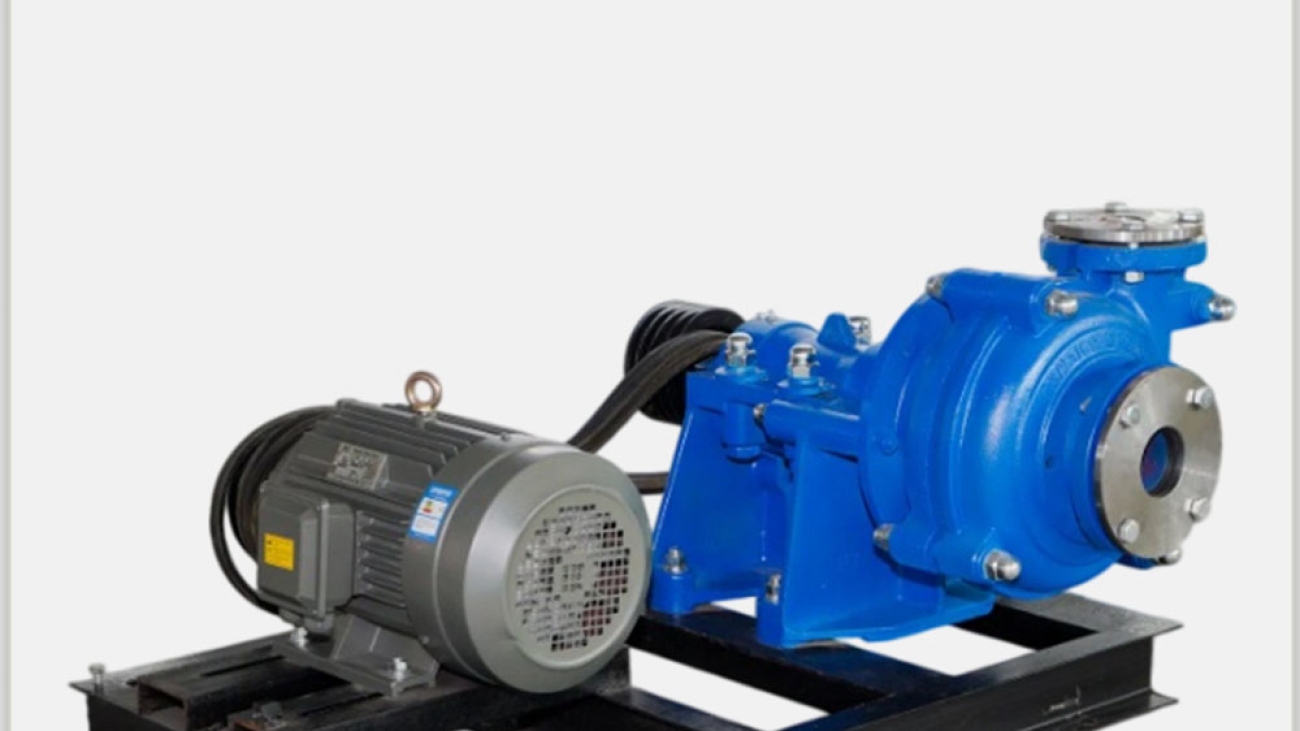

HTAH, HTM, HTHH Slurry Pump

Structural Features
1.Bearing Assembly
Large-diameter short-overhang shaft reduces deflection to prolong bearing service life; the cartridge bearing housing is fixed with only four through bolts.
2.Volute Liners
Replaceable metal/rubber liners are bolt-mounted (non-adhesive) for convenient maintenance; metallic and molded rubber liners are fully interchangeable, with elastic sealing rings sealed at all liner joints.
3.Pump Casing
Split cast/ductile iron casing with outer stiffening ribs bears high working pressure and improves operational safety.
4.Impeller
Front & rear shroud pump-out vanes cut backflow and seal fouling; metal and rubber impellers are interchangeable. Integral cast impeller threads eliminate additional inserts or lock nuts; high-efficiency and high-head impeller options are available.
5.Throatbush
Tapered matching surfaces ensure precise assembly positioning, lowering abrasion and simplifying disassembly.
6.Frame & Clearance Adjustment
Integrated heavy-duty frame supports cartridge bearing units; external adjusting device under bearing housing enables quick impeller clearance regulation.
7.Shaft Seal Options
Three optional shaft seals: packing seal, expeller seal and mechanical seal.
Main Application
HTAH, HTM, HTHH slurry pumps convey abrasive and corrosive slurries for metallurgy, mining, coal, power and building material industries. Suitable for various mill conditions including turbid water, crusher flushing, large-particle slurry, gravel transportation and filter press feeding.
Model Designation
For example:
Model: 10/8 ST – HTAH/HTM/HTHH
10 – Suction diameter (inch)
8 – Discharge diameter (inch)
ST – Frame type
HTHH – High-head slurry pump
HTM / HTAH – General-purpose slurry pump
Structure Diagram

Pump Frame Type Description

Frame Type	A	B	C	D	E	R	F	G	ST	TU
Max.Power (kw)	7.5	15	30	60	120	300	260	600	560	1200
Frame Weight (kg)	17	24	45	77.5	154	228	555	1006	546	1156
Amount of Shaft Sealing Water(l/s)	0.15	0.25	0.35	0.55	0.7	0.7	0.7	1.2	1.2	1.6

HTAH Selection and Performance Chart

Performance Of HTAH
Model	Max.	Capacity	Head	Impeller	Max.
	power			Impeller	particle
				Quantity	size
	kw	(m³/h)	(m)	of vanes	(mm)
1.5/1B-HTAH	15	3.6-21.6	6-65	5	14
2/1.5B-HTAH	15	7.2-48.6	5-62	5	19
3/2C-HTAH	30	21.6-88.56	15-40	5	21
4/3C-HTAH	30	28.8-158.4	7-53	5	28
6/4D-HTAH	60	72-331.2	11-64	5	44
8/6E-HTAH	120	126-720	6-62	5	63
10/8ST-HTAH	560	216-1051.2	9-64	5	76
12/10ST-HTAH	560	316.8-1620	10-66	5	86
14/12ST-HTAH	560	504-2455.2	10-75	5	90

HTAH, HTM, HTHH Slurry Pump

Pump Frame Type Description

Frame Type	A	B	C	D	E	R	F	G	ST	TU
Max.Power (kw)	7.5	15	30	60	120	300	260	600	560	1200
Frame Weight (kg)	17	24	45	77.5	154	228	555	1006	546	1156
Amount of Shaft Sealing Water(l/s)	0.15	0.25	0.35	0.55	0.7	0.7	0.7	1.2	1.2	1.6

HTAH Selection and Performance Chart

Performance Of HTAH
Model	Max.	Capacity	Head	Impeller	Max.
	power			Impeller	particle
				Quantity	size
	kw	(m³/h)	(m)	of vanes	(mm)
1.5/1B-HTAH	15	3.6-21.6	6-65	5	14
2/1.5B-HTAH	15	7.2-48.6	5-62	5	19
3/2C-HTAH	30	21.6-88.56	15-40	5	21
4/3C-HTAH	30	28.8-158.4	7-53	5	28
6/4D-HTAH	60	72-331.2	11-64	5	44
8/6E-HTAH	120	126-720	6-62	5	63
10/8ST-HTAH	560	216-1051.2	9-64	5	76
12/10ST-HTAH	560	316.8-1620	10-66	5	86
14/12ST-HTAH	560	504-2455.2	10-75	5	90

HTAH, HTM, HTHH Slurry Pump

Pump Frame Type Description

Frame Type	A	B	C	D	E	R	F	G	ST	TU
Max.Power (kw)	7.5	15	30	60	120	300	260	600	560	1200
Frame Weight (kg)	17	24	45	77.5	154	228	555	1006	546	1156
Amount of Shaft Sealing Water(l/s)	0.15	0.25	0.35	0.55	0.7	0.7	0.7	1.2	1.2	1.6

HTAH Selection and Performance Chart

Performance Of HTAH
Model	Max.	Capacity	Head	Impeller	Max.
	power			Impeller	particle
				Quantity	size
	kw	(m³/h)	(m)	of vanes	(mm)
1.5/1B-HTAH	15	3.6-21.6	6-65	5	14
2/1.5B-HTAH	15	7.2-48.6	5-62	5	19
3/2C-HTAH	30	21.6-88.56	15-40	5	21
4/3C-HTAH	30	28.8-158.4	7-53	5	28
6/4D-HTAH	60	72-331.2	11-64	5	44
8/6E-HTAH	120	126-720	6-62	5	63
10/8ST-HTAH	560	216-1051.2	9-64	5	76
12/10ST-HTAH	560	316.8-1620	10-66	5	86
14/12ST-HTAH	560	504-2455.2	10-75	5	90

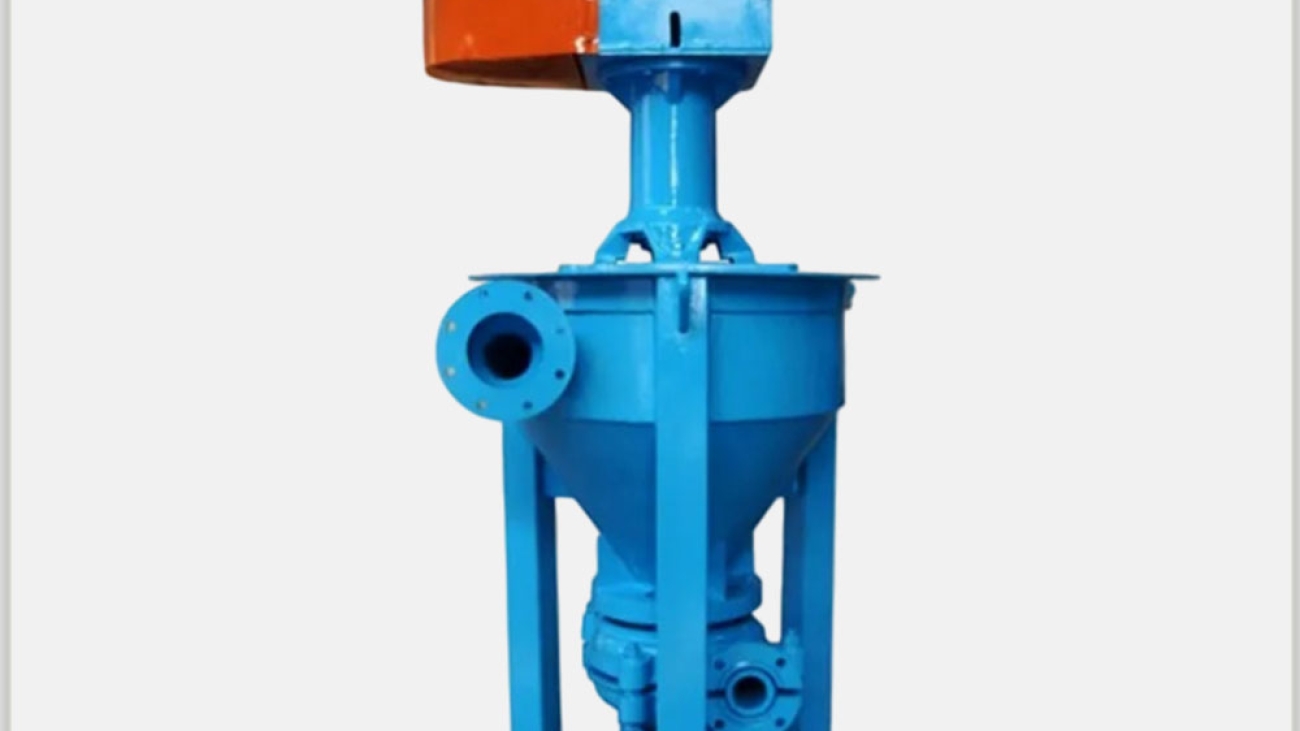

AF Froth Pump

Product Features

Adopts heavy-duty through-bolt structure and fully ductile iron lined casing, featuring high structural strength, durability and long service life.
Equipped with large-diameter low-speed impellers and large open flow passages, which reduce internal flow velocity, minimize component wear, improve operating efficiency and lower total operating costs.
Unique impeller structure is specially customized for complex and harsh froth conveying conditions.
Configured with thick bolt-in metal and elastomer liners with excellent corrosion and abrasion resistance; liners are replaceable and interchangeable to reduce maintenance costs and extend pump service life.
Optimized minimal shaft and impeller overhang design reduces shaft deflection and greatly prolongs packing service life.
Adopts cartridge-style bearing assembly, enabling convenient and clean maintenance without pump disassembly, avoiding production downtime and extending bearing service life.
Matches multiple centrifugal seal modes including full flush, low flow and dry running, which saves water resources and reduces operating expenses.

Main Application

Widely applied in metallurgy, mining, coal, chemical engineering and other industrial fields. It is specially suitable for conveying viscous, frothy, abrasive and corrosive slurries generated in mineral processing and oil sand extraction, and is the preferred equipment for various flotation process systems.

Structure Diagram

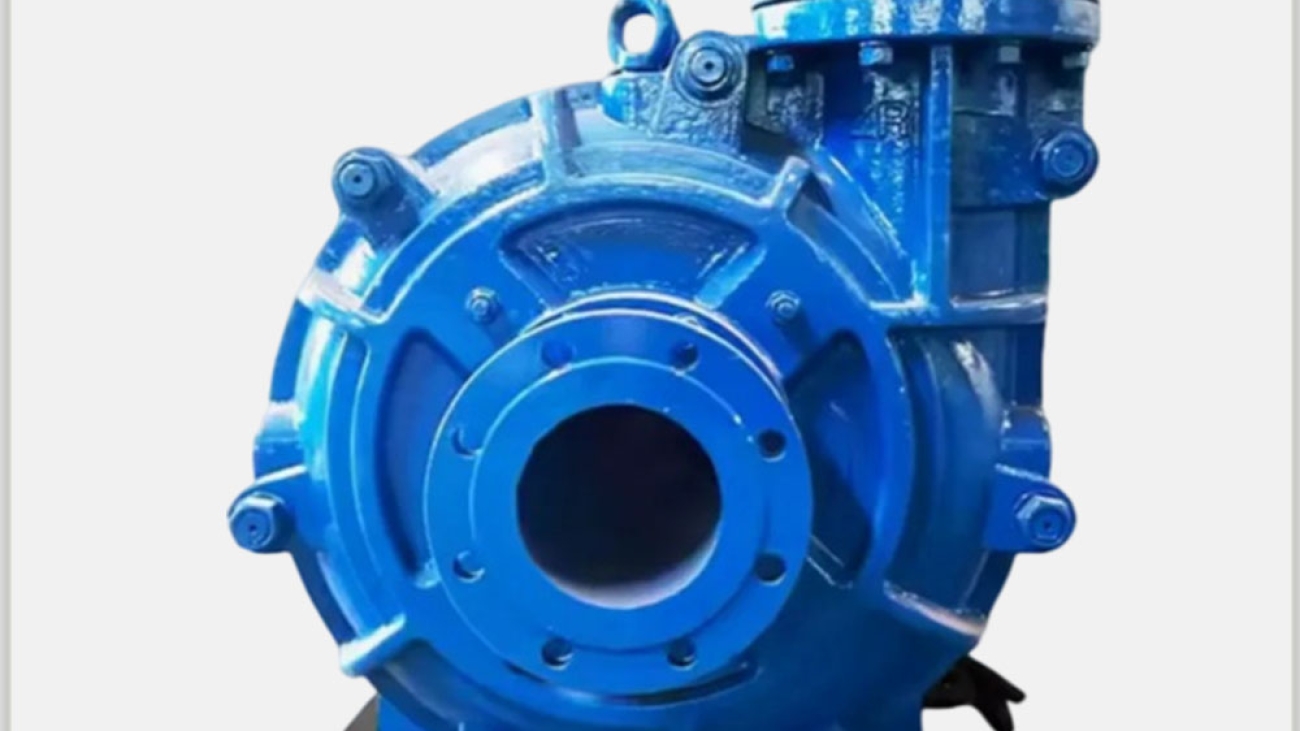

ZGB(P) Slurry Pump

Product Features
1.Smooth wide flow passage brings excellent anti-clogging and cavitation performance, low abrasion and high hydraulic efficiency.
2.Optional combined expeller+packing seal or mechanical seal; series pumps of two-stage and above recommend high-pressure flushed mechanical seal for zero slurry leakage.
3.Bearing pedestal adopts thin-oil lubrication with built-in dual inner/outer water cooling circuit for low-temperature stable bearing operation.
4.Specially formulated wear & corrosion resistant wetted alloys, customized for seawater corrosion environment to extend service life.
5.Reliability-optimized design improves MTBF; compact layout enables easy daily inspection and maintenance.
Main Application
Widely deployed in power, metallurgy, mining, coal, construction material and chemical industries for conveying abrasive/corrosive solid-laden slurry, especially for power plant ash and slag transportation.
Model Designation
For example:
Model: 150 Z G B (P) – 740

150-Discharge diameter (mm)
Z – Slurry pump
G -High head
B -Series code
(P)-Multi-stage series (three-stage, four-stage);
no marking for single-stage and two-stage
740- Impeller diameter (mm)

Structure Diagram

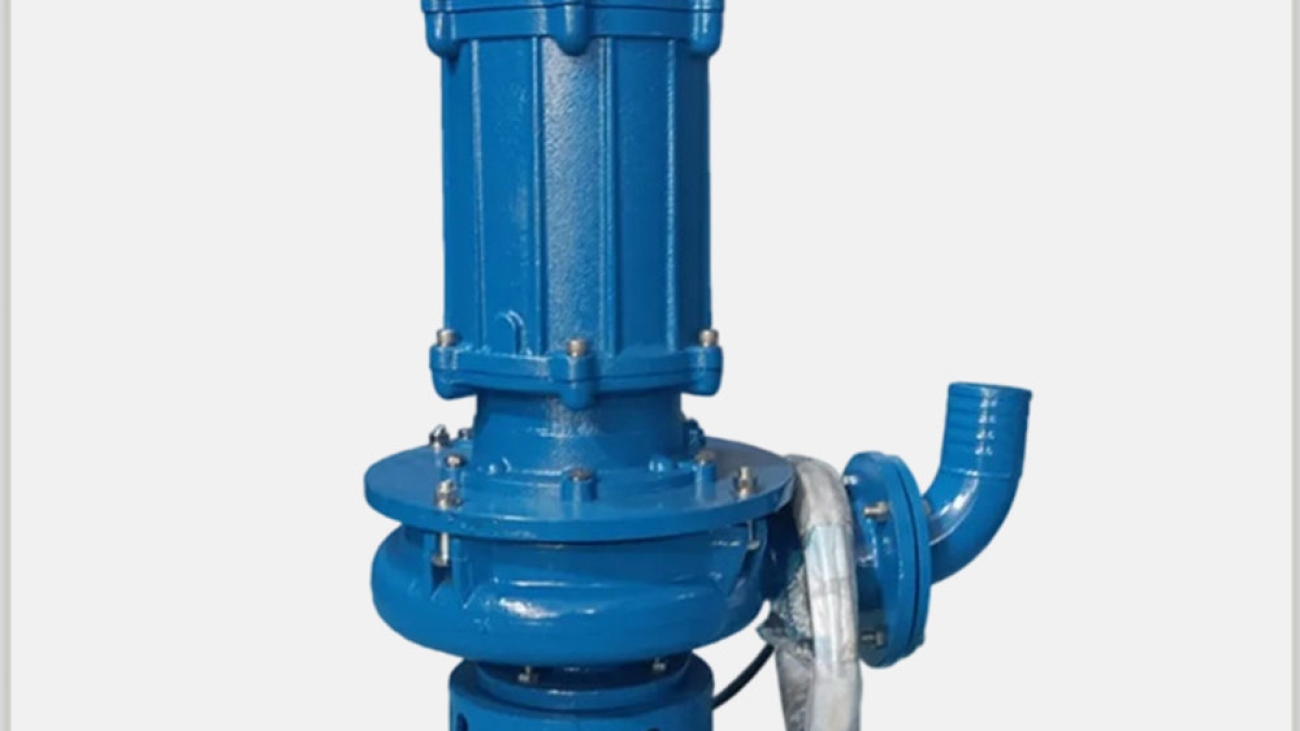

ZJQSubmersible Slurry Pump

Product Features

1.Built-in stirring impeller stirs settled sludge into suspension to raise feeding concentration without extra auxiliary equipment.

2.Unique pressure-balanced sealing structure stops slurry ingress; motor fitted with overheat & water intrusion protection for safe harsh-condition running.

3.Wide flow passage plus high-alloy wear-resisting wet components, large flow capacity and prolonged service life.

4.No fixed pump house required, low noise, easy installation and relocation; optional agitator further improves pumping efficiency.

Main Application

For transportation of ore slurry, coal slurry, gravel, tailings and sediment. Widely used in river/lake dredging, sand extraction, sewage treatment, channel renovation, mining, metallurgy, environmental protection and municipal engineering.

Model Designation

For example:

Model: 80ZJQ36-454AB

80 – Diameter (mm)

ZJ- Slurry Pump

Q-Submersible Pump

36-Wetted Parts Model

45- Power (kW)

4-Motor (Pole)

A-Forced Cooling

B-Protected Type

Structure Diagram

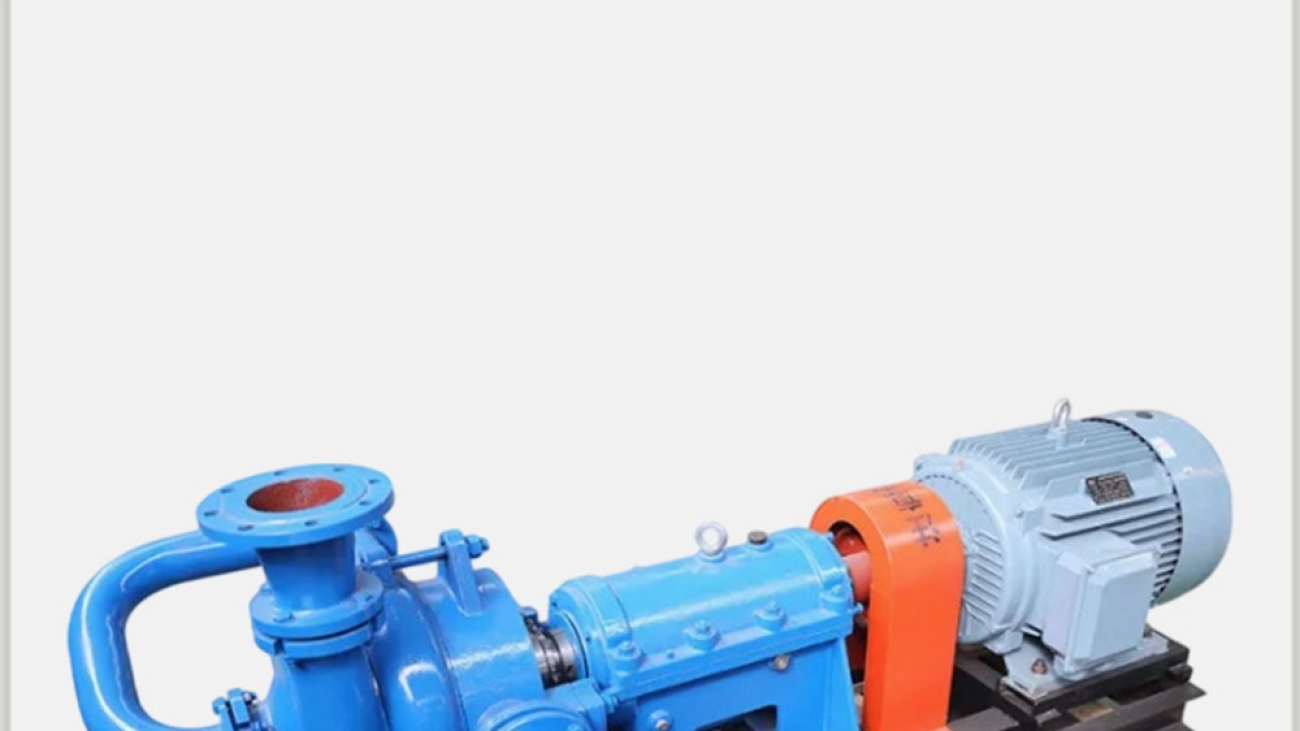

ZJE-II Filter Press Feed Pump

Product Features

1.Advanced and innovative hydraulic and structural design, featuring high efficiency, corrosion resistance and stable reliable operation.

2.High flow rate with low pressure at initial feeding stage.

3.Low flow rate with high pressure at final squeezing stage.

4.Simple and reliable shaft seal: no flushing water or mechanical seal needed, completely leak-free.

5.Variable frequency drive is unnecessary during feeding, capable of high-concentration slurry delivery.

Main Application

Specially designed for filter press feeding of high-density abrasive slurry.

Structure Diagram

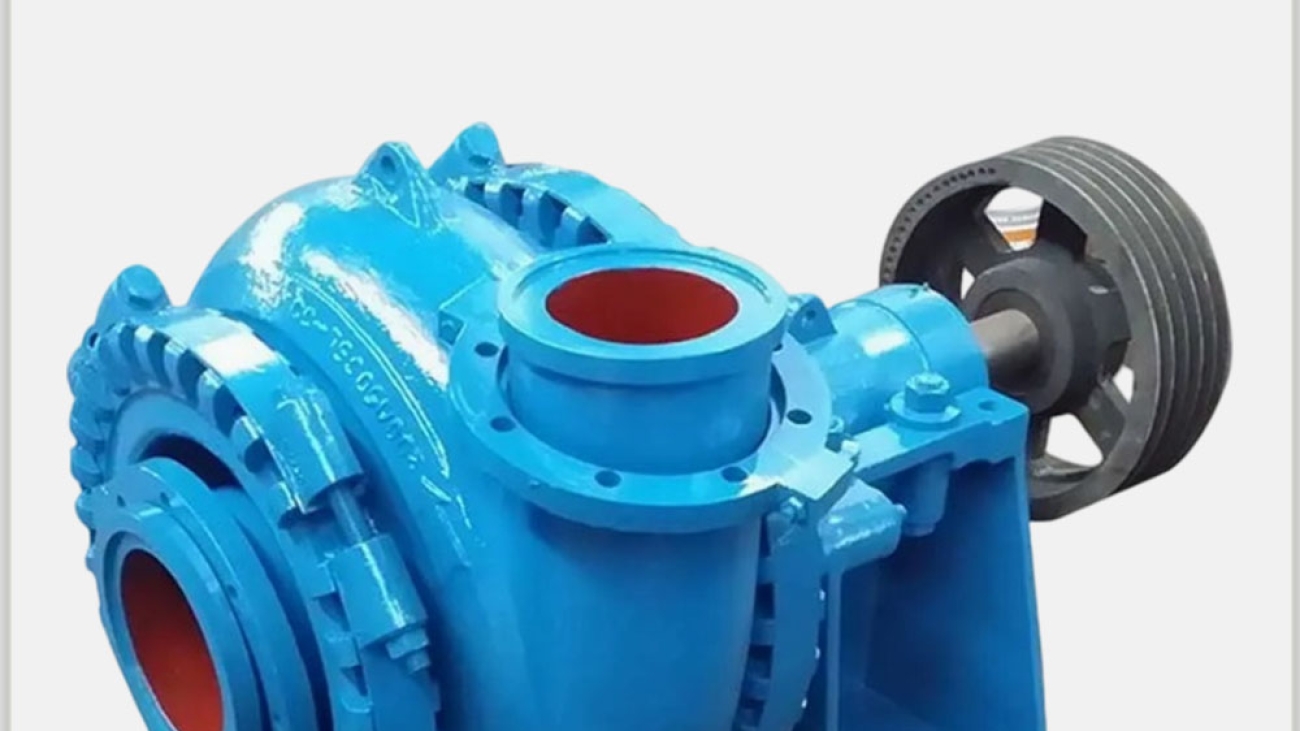

G GH Gravel Pump

Product Features

1.Wide flow passage delivers outstanding anti-cavitation performance and high efficiency.

2.Single casing fixed by clamp bands; discharge outlet adjustable at any 360° angle for flexible mounting.

3.Wetted parts adopt Ni-hard & high-chromium wear-resistant alloys for long service life.

4.Optional shaft seals: packing, expeller and mechanical seal.

5.Multiple drive selections: V-belt, flexible coupling, gear reducer, hydraulic coupling, VFD and SCR speed control.

Main Application

G/GH gravel pumps serve mining, coal washing, power, metallurgy, petrochemical, construction and dredging for oversized abrasive slurry, river sand and smelting slag conveyance.

Model Designation

For example:

Model: 6/4-G/GH

Suction diameter (inch)

4-Discharge diameter (inch)

Frame type

G-Gravel pump

GH-High head gravel pump

Structure Diagram

SP SPR Sump Slurry Pump

Product Features

1.Vertical cantilever single casing with double-suction semi-open impeller available in alloy or rubber.

2.Heavy-duty cylindrical bearing assembly with grease lubrication.

3.Adjustable clearance between impeller and liner to maintain optimal efficiency.

4.Drive options: direct coupling or V-belt transmission.

5.Seal-free construction; full rubber lining on SPR effectively withstands heavy slurry corrosion.

Main Application

SP & SPR sump pumps are widely applied in mining, power, metallurgy, coal, dredging and construction sectors for conveying concentrate, tailings, sludge, corrosive and high-density abrasive slurries.

Model Designation

For example:

Model: 40PV-SP/SPR
40 – Discharge diameter (mm)
PV – PV type bearing assembly
SP – vertical sump pump
SPR – Rubber-lined vertical sump pump

Structure Diagram

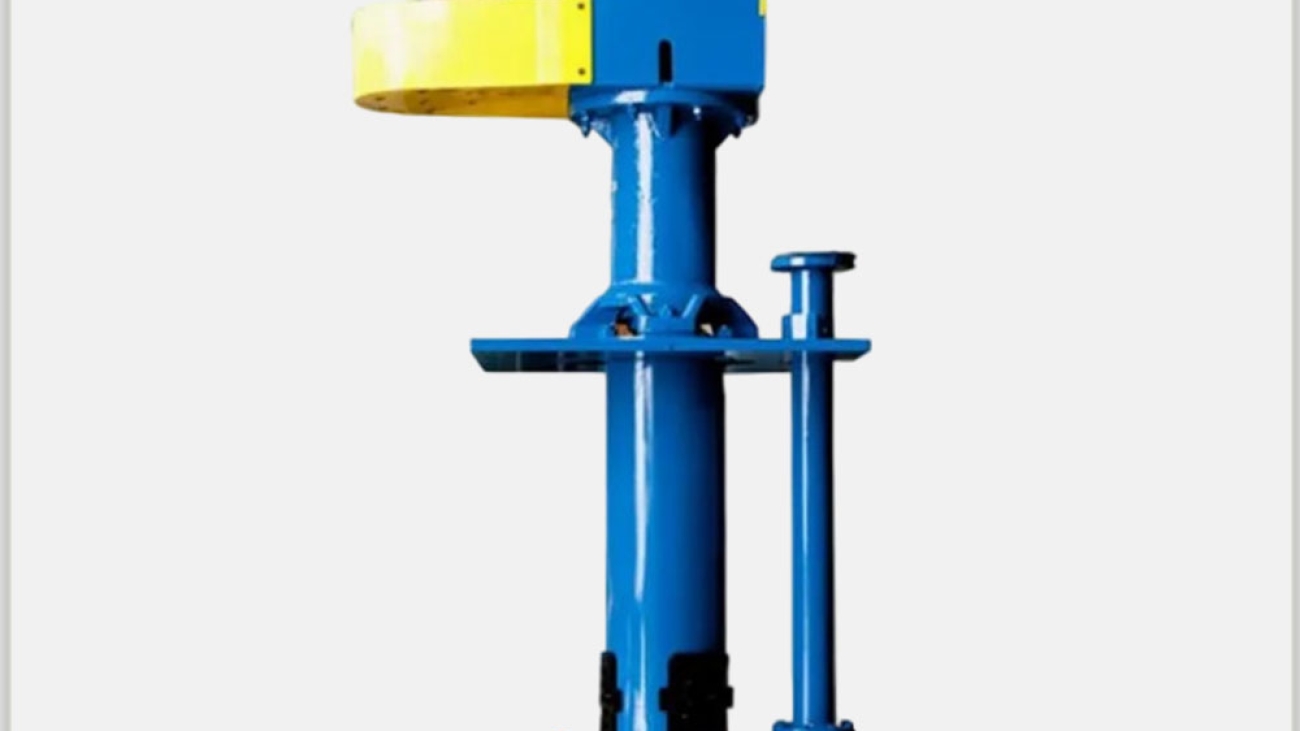

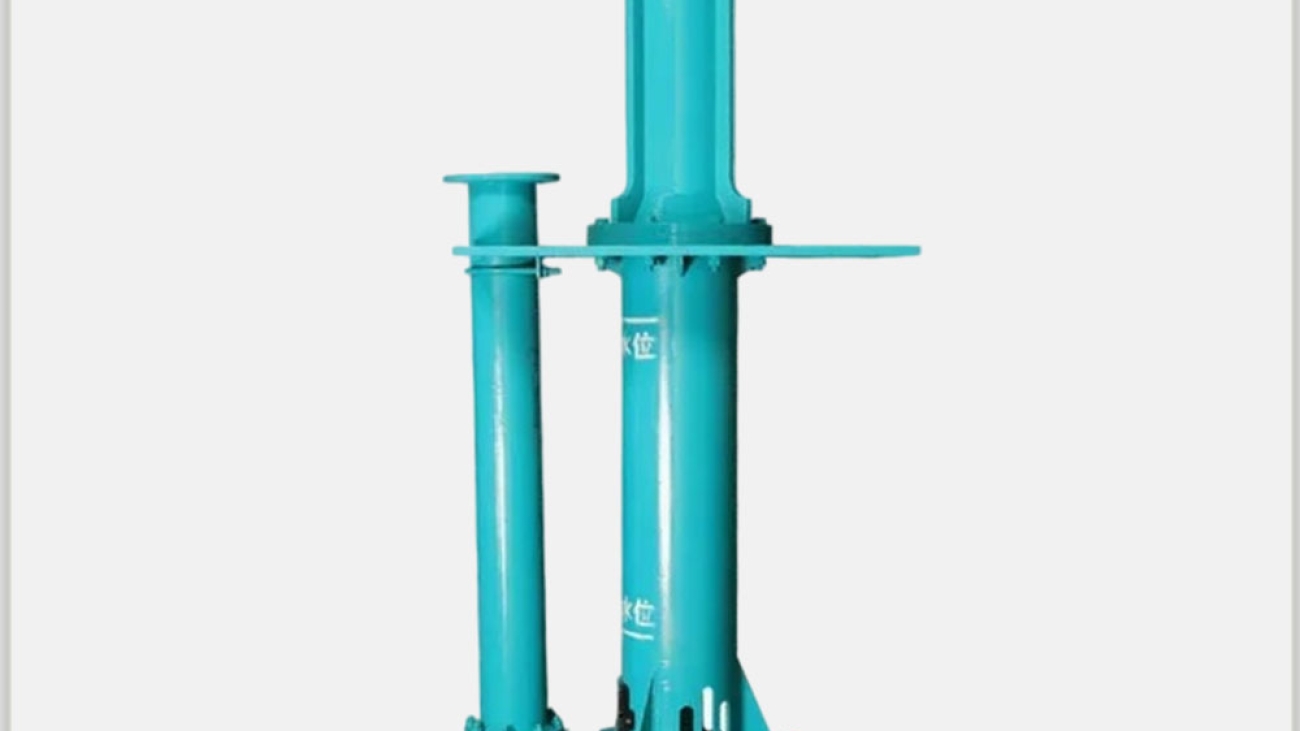

ZJL Slurry Pump

Product Features

1.Wetted parts: wear-resistant metal or replaceable rubber lining optional

2.Compact vertical layout saves installation footprint

3.Replaceable shaft protective sleeve fitted as standard

4.Double-suction semi-open impeller; optional recessed impeller for large-size solids passing

5.No submerged bearing or packing seal structure

6.agitator prevents solid sedimentation

7.Tolerates insufficient suction working conditions

8.Smooth, low-vibration operation

Main Application

Ideal for corrosive, coarse-particle and high-concentration slurry transfer. Widely applied in mining, mineral processing, coal washing, tailings disposal, dredging, power plant, sewage & wastewater treatment, cyclone feeding and construction material industries.

Model Designation

For example:

Model: 65-ZJ-L-30

65-Discharge diameter(mm)

ZJ-Slurry pump

Vertical type

30-Impeller diameter(mm)

Structure Diagram
