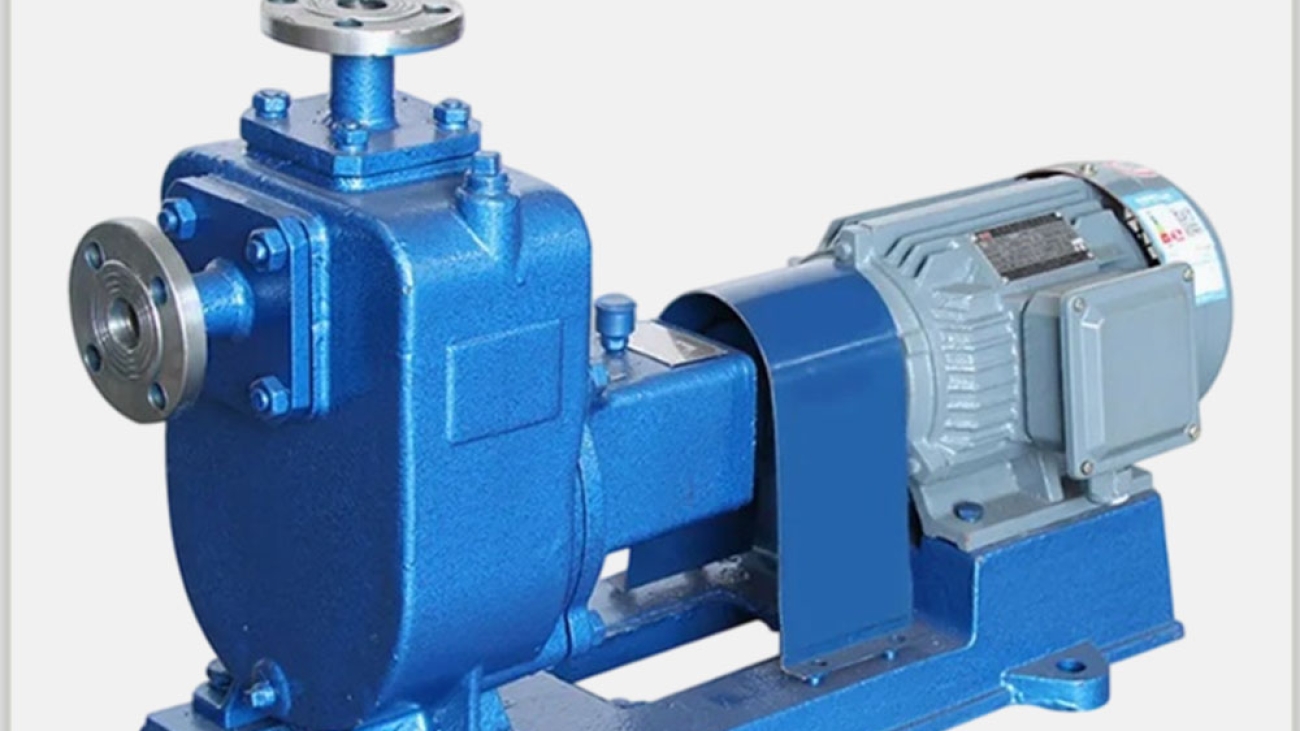

ZX-Self-Priming-Pump-3

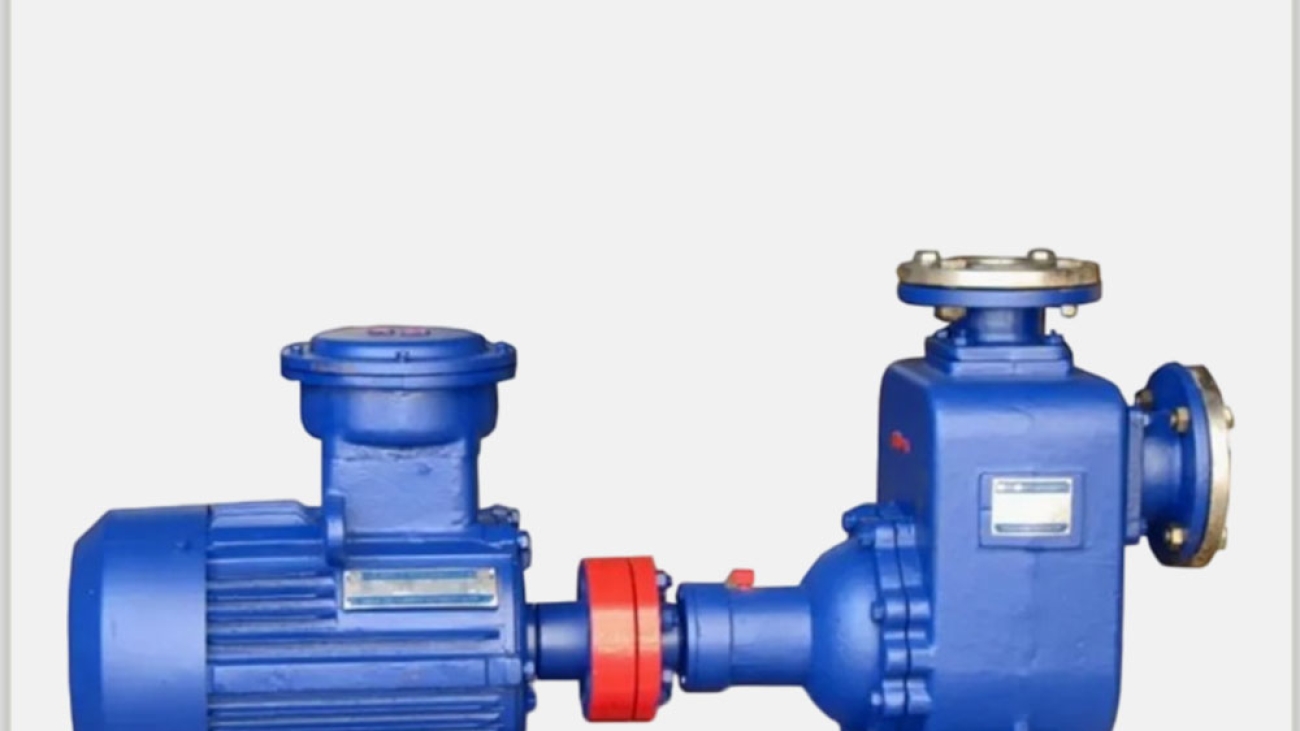

ZX Self-Priming Pump

Main Application

1.Industrial & municipal water service

Urban environmental protection, construction, fire fighting, power supply, electroplating, papermaking, industrial cleaning and equipment cooling.

2. fluid transfer

Chemical, pharmaceutical, printing & dyeing, brewing industries for clean water, seawater and mild acid/alkali chemical liquids.

3.Agricultural sprinkling irrigation

Match with rocker spray nozzles to atomize water; widely used for farmland, seedling nurseries, fruit and tea plantations.

4.Paste & slurry delivery

Transport general viscous paste slurry (viscosity＜100%, solid content ≤30%).

5.Filter press feeding

Perfect matched with all types of filter presses as dedicated feeding pump for filter pressing.

Model Designation

For example:

Model: 50 zx 12.5-50 PB

50-Suction Diameter (mm)

ZX-Self-Priming Pump

12.5 -Flow (m3/h)

50-Head (m)

P-Stainless Steel

B-Explosion-Proof Motor

Structure Diagram

1. Inlet flange

2. Check valve

3.Charging hole

4. Outlet flange

5. Pump body

6. Gas-liquid separation chamber

7. Rear cover

8. Impeller

9. Mechanical seal

10. Pump shaft

11. Bearing

12. Bearing body

13. Bearing

14. Coupling

ZX-Self-Priming-Pump-2

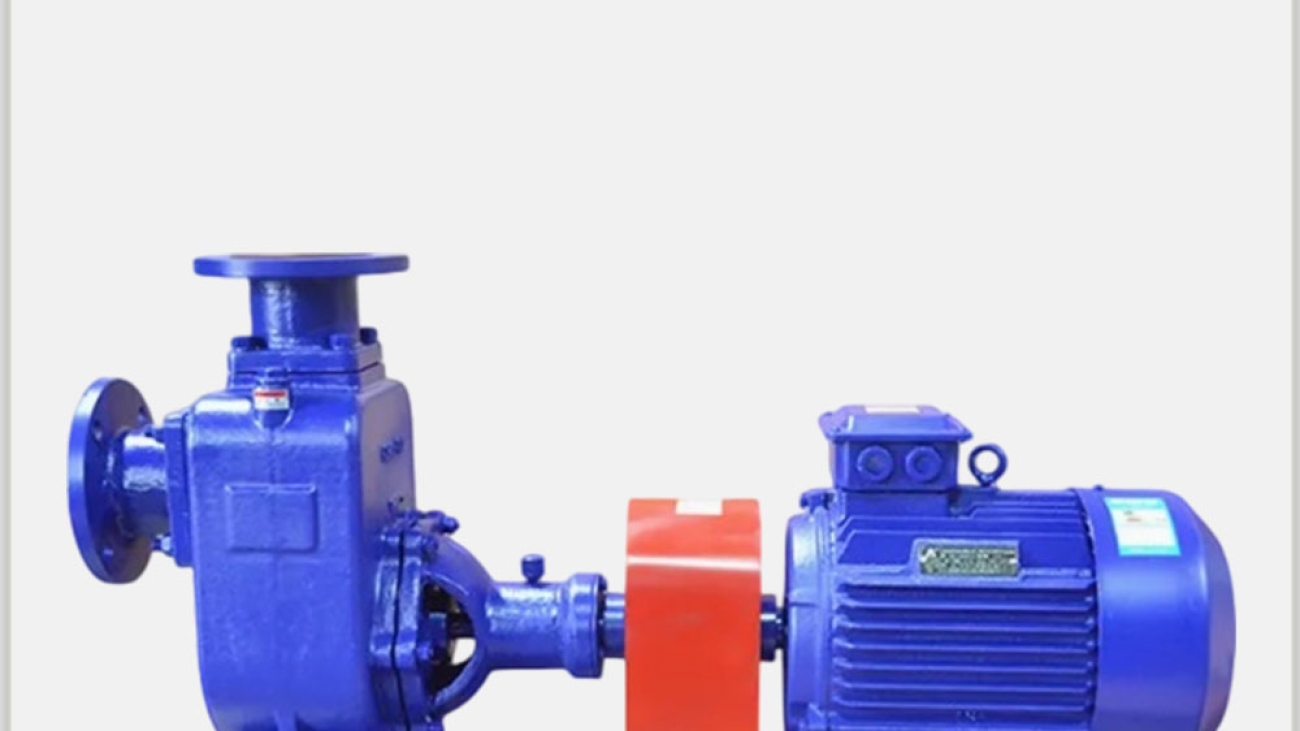

ZX Self-Priming Pump

Main Application

1.Industrial & municipal water service

Urban environmental protection, construction, fire fighting, power supply, electroplating, papermaking, industrial cleaning and equipment cooling.

2. fluid transfer

Chemical, pharmaceutical, printing & dyeing, brewing industries for clean water, seawater and mild acid/alkali chemical liquids.

3.Agricultural sprinkling irrigation

Match with rocker spray nozzles to atomize water; widely used for farmland, seedling nurseries, fruit and tea plantations.

4.Paste & slurry delivery

Transport general viscous paste slurry (viscosity＜100%, solid content ≤30%).

5.Filter press feeding

Perfect matched with all types of filter presses as dedicated feeding pump for filter pressing.

Model Designation

For example:

Model: 50 zx 12.5-50 PB

50-Suction Diameter (mm)

ZX-Self-Priming Pump

12.5 -Flow (m3/h)

50-Head (m)

P-Stainless Steel

B-Explosion-Proof Motor

Structure Diagram

1. Inlet flange

2. Check valve

3.Charging hole

4. Outlet flange

5. Pump body

6. Gas-liquid separation chamber

7. Rear cover

8. Impeller

9. Mechanical seal

10. Pump shaft

11. Bearing

12. Bearing body

13. Bearing

14. Coupling

ZX-Self-Priming-Pump-1

ZX Self-Priming Pump

Main Application

1.Industrial & municipal water service

Urban environmental protection, construction, fire fighting, power supply, electroplating, papermaking, industrial cleaning and equipment cooling.

2. fluid transfer

Chemical, pharmaceutical, printing & dyeing, brewing industries for clean water, seawater and mild acid/alkali chemical liquids.

3.Agricultural sprinkling irrigation

Match with rocker spray nozzles to atomize water; widely used for farmland, seedling nurseries, fruit and tea plantations.

4.Paste & slurry delivery

Transport general viscous paste slurry (viscosity＜100%, solid content ≤30%).

5.Filter press feeding

Perfect matched with all types of filter presses as dedicated feeding pump for filter pressing.

Model Designation

For example:

Model: 50 zx 12.5-50 PB

50-Suction Diameter (mm)

ZX-Self-Priming Pump

12.5 -Flow (m3/h)

50-Head (m)

P-Stainless Steel

B-Explosion-Proof Motor

Structure Diagram

1. Inlet flange

2. Check valve

3.Charging hole

4. Outlet flange

5. Pump body

6. Gas-liquid separation chamber

7. Rear cover

8. Impeller

9. Mechanical seal

10. Pump shaft

11. Bearing

12. Bearing body

13. Bearing

14. Coupling

ISG-Pipeline-Pump-1

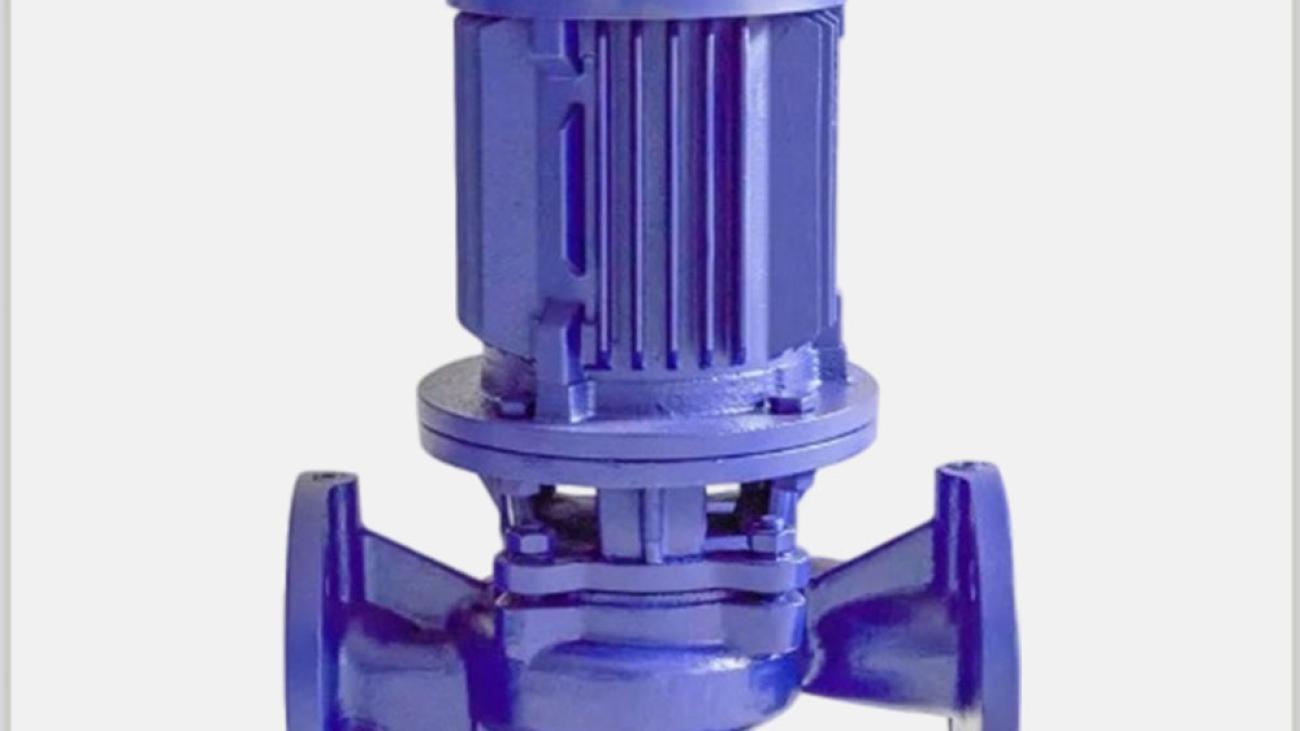

ISG Pipeline Pump

Product Overview

1.ISG/ISW vertical in-line and horizontal close-coupled centrifugal pumps are designed for clean water and liquids with similar physicochemical characteristics. Typical applications cover industrial and municipal water supply & drainage, high-rise water boosting, garden sprinkler irrigation, fire pressurization, long-distance water conveyance, HVAC chilled/hot water circulation, bathroom hot & cold water pressurization and ancillary equipment matching. Max permissible medium temperature: ＜80°C.

2.IRG/GRG IRZ vertical in-line and horizontal close-coupled high-temperature hot water circulation pumps are applied for boiler hot water pressurization and circulation in energy, metallurgy, chemical, textile, paper, hotel and hospitality industries, together with municipal district heating systems. Maximum working temperature: IRG ＜120°C, GRG ＜240°C.

3.IHG/IHZ vertical in-line and horizontal close-coupled chemical pumps convey solid-free corrosive liquids of water-like viscosity at -20°C ~ 120°C, extensively used in petroleum, chemical, metallurgical, power, paper, food, pharmaceutical and synthetic fiber industries.

4.YG/YZ vertical in-line and  horizontal close-coupled oil pumps deliver gasoline, kerosene, diesel and other petroleum products with medium temperature ranging from -20°C to 120°C.

Model Designation

For example:

Model: ISG 50-160 (1) A (B)

ISG-Vertical In-Line Pipeline Pump

50-Pump suction and discharge diameter (mm)

160-Impeller nominal outside diameter (mm)

1-Flow rate classification

A (B)-Impeller trimming stage

ISG Pipeline Pump Structure Diagram

1,Water intake plug

2,Air release valve

3,Impeller

4,Mechanical seal

5,Bearing

6, Motor

7, Integrated base

8, Water deflector ring

9,Impeller nut

10,Casing

11,Drain valve

ISW-Pipeline -Pump-haitong-1

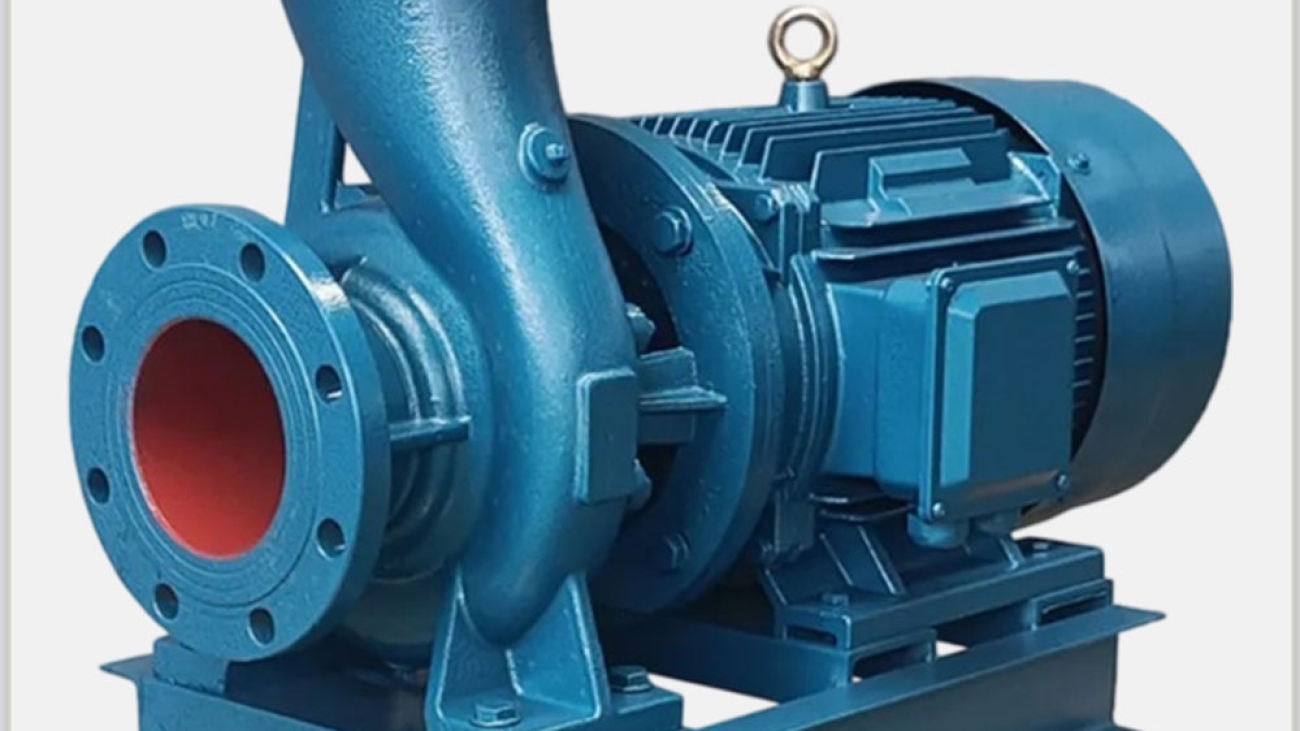

ISW Pipeline Pump

Product Overview

1.ISG/ISW vertical in-line and horizontal close-coupled centrifugal pumps are designed for clean water and liquids with similar physicochemical characteristics. Typical applications cover industrial and municipal water supply & drainage, high-rise water boosting, garden sprinkler irrigation, fire pressurization, long-distance water conveyance, HVAC chilled/hot water circulation, bathroom hot & cold water pressurization and ancillary equipment matching. Max permissible medium temperature: ＜80°C.

2.IRG/GRG IRZ vertical in-line and horizontal close-coupled high-temperature hot water circulation pumps are applied for boiler hot water pressurization and circulation in energy, metallurgy, chemical, textile, paper, hotel and hospitality industries, together with municipal district heating systems. Maximum working temperature: IRG ＜120°C, GRG ＜240°C.

3.IHG/IHZ vertical in-line and horizontal close-coupled chemical pumps convey solid-free corrosive liquids of water-like viscosity at -20°C ~ 120°C, extensively used in petroleum, chemical, metallurgical, power, paper, food, pharmaceutical and synthetic fiber industries.

4.YG/YZ vertical in-line and  horizontal close-coupled oil pumps deliver gasoline, kerosene, diesel and other petroleum products with medium temperature ranging from -20°C to 120°C.

Model Designation

For example:

Model: ISG 50-160 (1) A (B)

ISG-Vertical In-Line Pipeline Pump

50-Pump suction and discharge diameter (mm)

160-Impeller nominal outside diameter (mm)

1-Flow rate classification

A (B)-Impeller trimming stage

ISG Pipeline Pump Structure Diagram

1,Water intake plug

2,Air release valve

3,Impeller

4,Mechanical seal

5,Bearing

6, Motor

7, Integrated base

8, Water deflector ring

9,Impeller nut

10,Casing

11,Drain valve

IH-Chemical -Pump-1

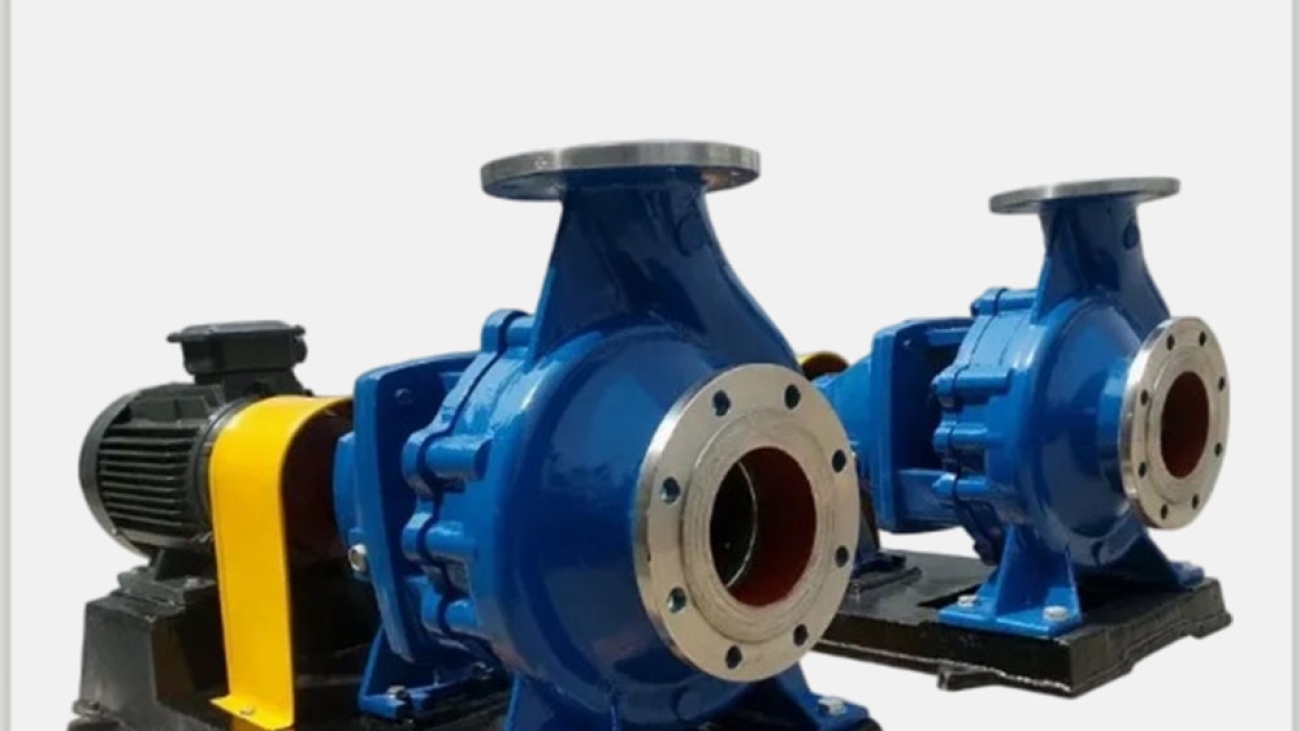

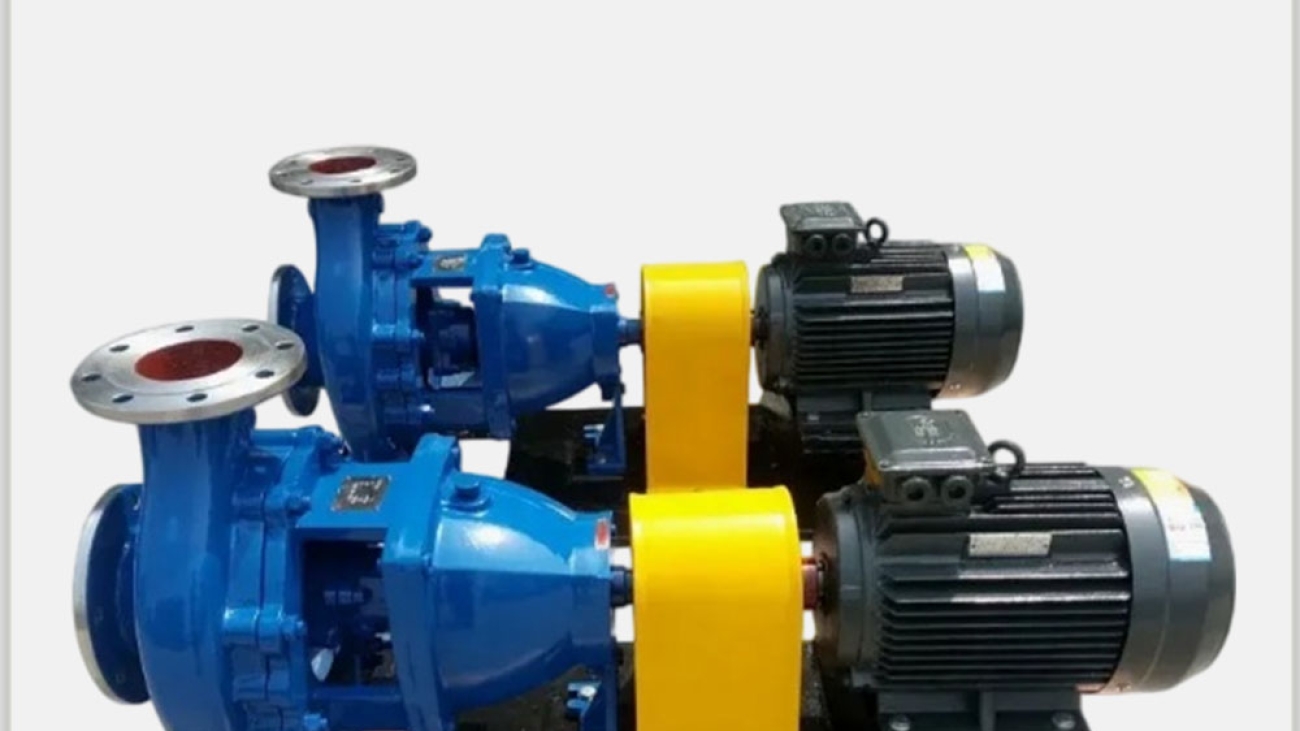

IH Chemical Pump

Performance Range

Flow: 6.3–400 m³/h

Head: 5–125 m

Speed: 2900 r/min and 1450 r/min

Motor power: 0.55–90 kW

Suction diameter: 50–200 mm

Maximum working pressure: 1.6 MPa

Main Application

Petroleum, chemical, metallurgy, power, paper, food, pharmaceutical and synthetic fiber industries.

Model Designation

For example:

Model: IH 80-65-160-A—-J

IH-Chemical Pump

80-Suction diameter (mm)

65-Discharge diameter (mm)

160-Nominal impeller diameter (mm)

A-Impeller trim grade

J-Reduced-speed pump

Structure Diagram

1. Pump body
2. Impeller
3. Sealing ring
4. Impeller nut
5. Pump cover
6. Sealing components
7. Middle bracket
8. Axis
9. Suspension components

IH-Chemical -Pump-2

IH Chemical Pump

Performance Range

Flow: 6.3–400 m³/h

Head: 5–125 m

Speed: 2900 r/min and 1450 r/min

Motor power: 0.55–90 kW

Suction diameter: 50–200 mm

Maximum working pressure: 1.6 MPa

Main Application

Petroleum, chemical, metallurgy, power, paper, food, pharmaceutical and synthetic fiber industries.

Model Designation

For example:

Model: IH 80-65-160-A—-J

IH-Chemical Pump

80-Suction diameter (mm)

65-Discharge diameter (mm)

160-Nominal impeller diameter (mm)

A-Impeller trim grade

J-Reduced-speed pump

Structure Diagram

1. Pump body
2. Impeller
3. Sealing ring
4. Impeller nut
5. Pump cover
6. Sealing components
7. Middle bracket
8. Axis
9. Suspension components

IH-Chemical -Pump-3

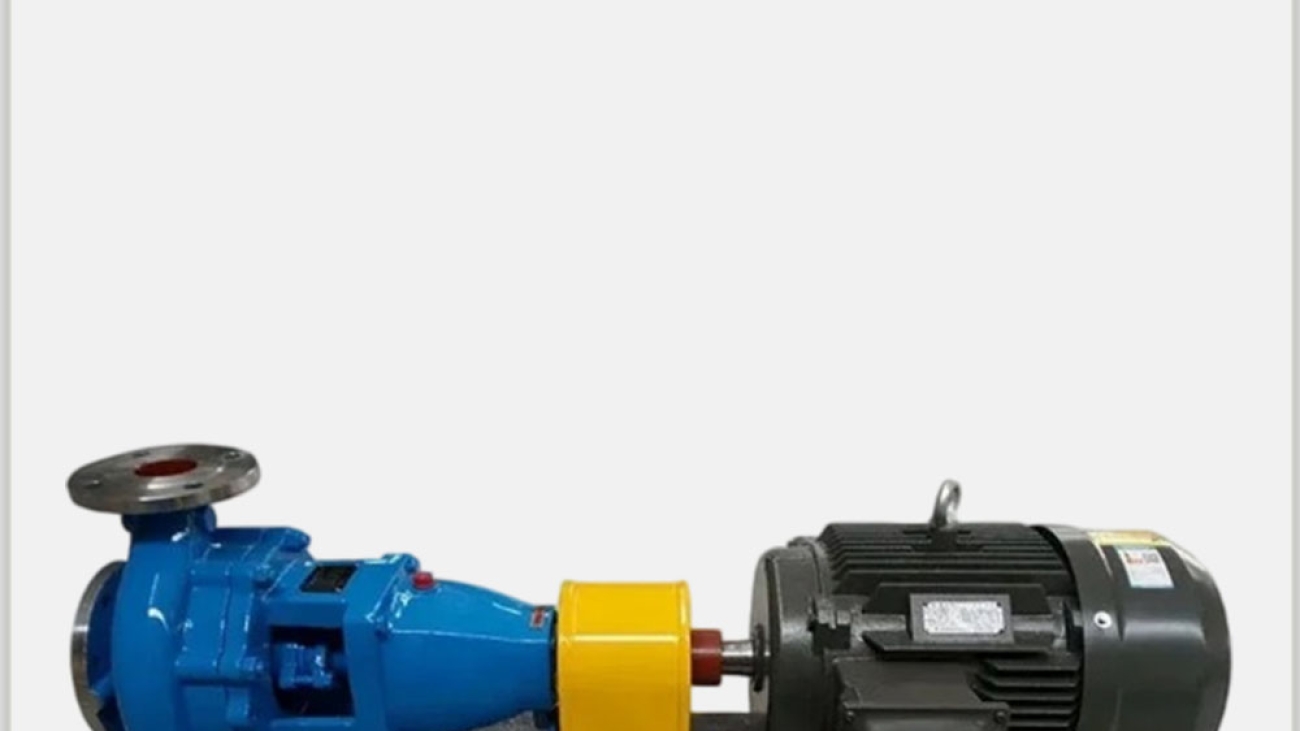

IH Chemical Pump

Performance Range

Flow: 6.3–400 m³/h

Head: 5–125 m

Speed: 2900 r/min and 1450 r/min

Motor power: 0.55–90 kW

Suction diameter: 50–200 mm

Maximum working pressure: 1.6 MPa

Main Application

Petroleum, chemical, metallurgy, power, paper, food, pharmaceutical and synthetic fiber industries.

Model Designation

For example:

Model: IH 80-65-160-A—-J

IH-Chemical Pump

80-Suction diameter (mm)

65-Discharge diameter (mm)

160-Nominal impeller diameter (mm)

A-Impeller trim grade

J-Reduced-speed pump

Structure Diagram

1. Pump body
2. Impeller
3. Sealing ring
4. Impeller nut
5. Pump cover
6. Sealing components
7. Middle bracket
8. Axis
9. Suspension components

IH-Chemical -Pump-4

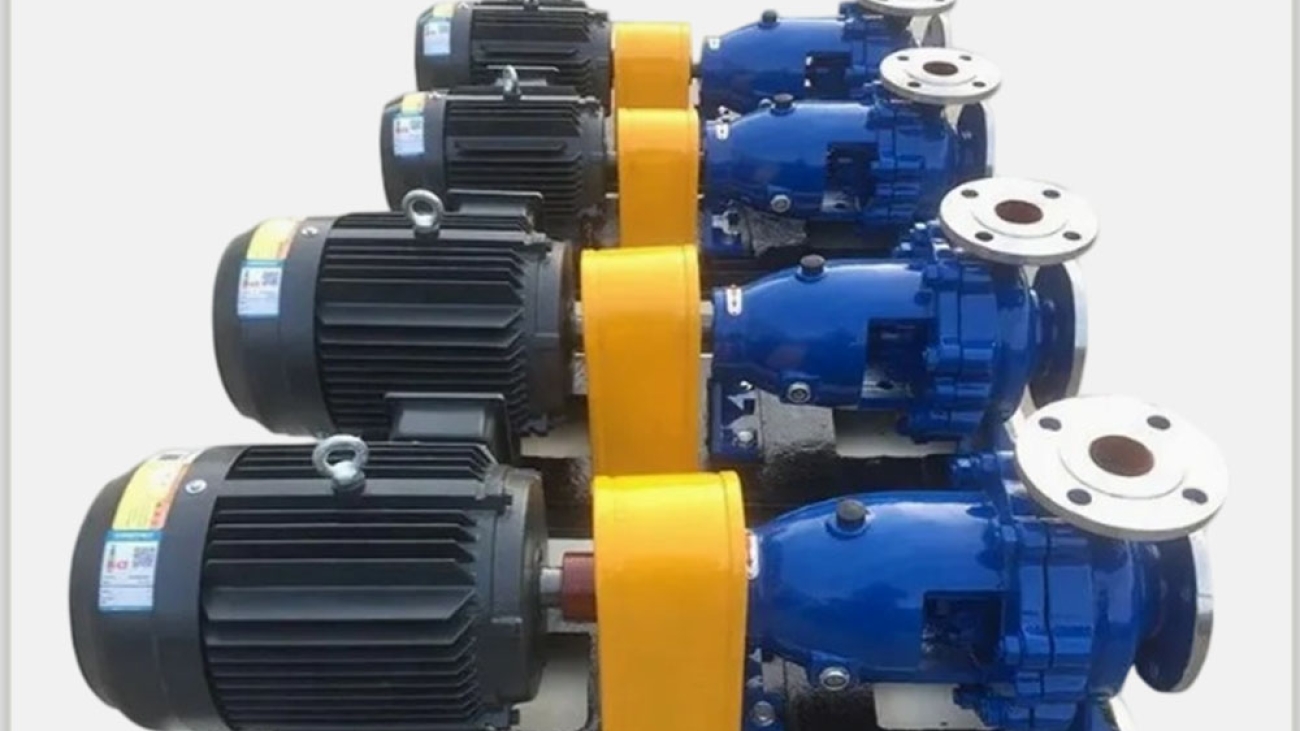

IH Chemical Pump

Performance Range

Flow: 6.3–400 m³/h

Head: 5–125 m

Speed: 2900 r/min and 1450 r/min

Motor power: 0.55–90 kW

Suction diameter: 50–200 mm

Maximum working pressure: 1.6 MPa

Main Application

Petroleum, chemical, metallurgy, power, paper, food, pharmaceutical and synthetic fiber industries.

Model Designation

For example:

Model: IH 80-65-160-A—-J

IH-Chemical Pump

80-Suction diameter (mm)

65-Discharge diameter (mm)

160-Nominal impeller diameter (mm)

A-Impeller trim grade

J-Reduced-speed pump

Structure Diagram

1. Pump body
2. Impeller
3. Sealing ring
4. Impeller nut
5. Pump cover
6. Sealing components
7. Middle bracket
8. Axis
9. Suspension components

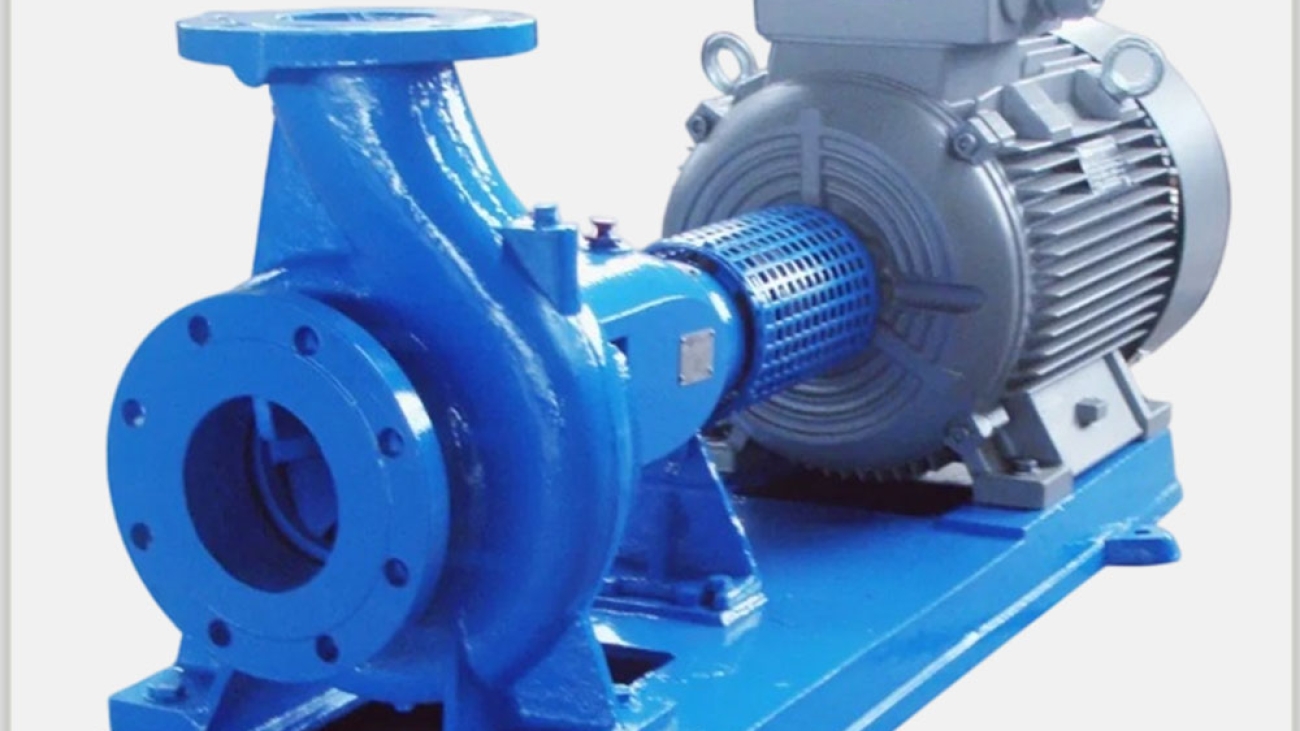

IS-Water-Pump-haitong-1

IS ISR Centrifugal Water Pump

Product Features

1.ISR adopts centerline-supported casing to relieve thermal stress under high temperature; cooling chambers are arranged on bracket, cover and seal housing for water/air cooling.

2.Bearings adopt thin-oil lubrication with rated service life of around 25,000 hours for higher load capacity.

3.Shaft seal is available in packing seal or mechanical seal options.

Main Application

1.IS: industrial & municipal water supply/drainage, agricultural irrigation and drainage.

2.ISR: boiler feedwater, hot water circulating & HVAC systems. Widely applied in power, metallurgy, textile, chemical, printing & dyeing, ceramic, rubber and heating industries.

Model Designation

For example:

Model: IS（R）80-65-160 A ——J (D)

IS（R)-Single-Stage, Single-Suction Clear Water Centrifugal Pump (Hot Water Circulation Pump)

80-Suction diameter (mm)

65-Discharge diameter (mm)

160-Nominal impeller diameter (mm)

A-Impeller trim grade

J(D)-Reduced-speed pump

IS Centrifugal Water Pump Structure Diagram

1. Pump body  2. Impeller  3. Seal ring  4. Impeller nut 5. Pump cover   6. Sealing parts  7. Intermediate support  8. Shaft  9. Suspension components
