Rubber Ball Circulating Pump
Rubber Ball Circulating Pump is dedicated non-clog centrifugal equipment serving condenser sponge ball cleaning systems, supplying driving force for continuous circulation of sponge rubber balls. Model 125SS-9 matches cleaning service for power units below 300MW. Non-blockage hydraulic design guarantees smooth passage of rubber balls without damage.
Product details
Main Application
Primarily for circulating sponge rubber balls in condenser cleaning of thermal power plants; also applicable for sewage and low-abrasion solid-containing mixed liquid transportation.

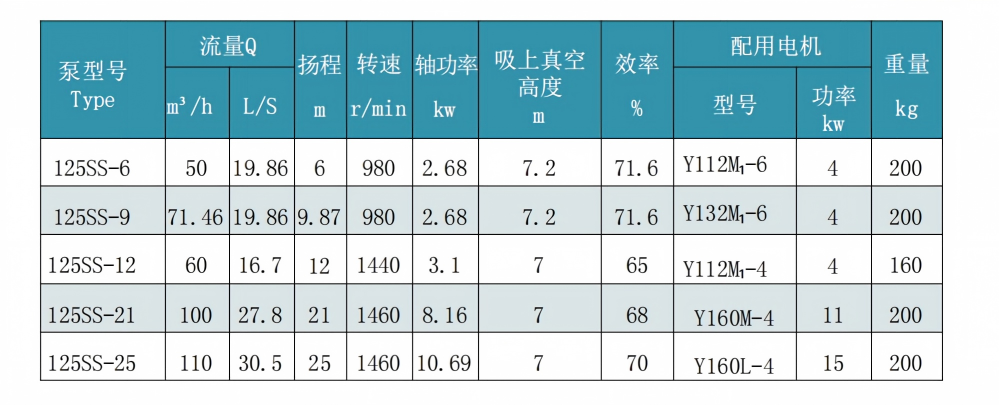

Performance Chart
| Type | Flow Q | Head (m) | Rotation Speed (r/min) | Shaft Power (kW) | Suction Vacuum Height (m) | Efficiency (%) | Equipped Motor | Weight (kg) | ||
| m³/h | L/S | Model | Motor Power (kW) | |||||||
| 125SS-6 | 50 | 19.86 | 6 | 980 | 2.68 | 7.2 | 71.6 | Y112M-6 | 4 | 200 |
| 125SS-9 | 71.46 | 19.86 | 9.87 | 980 | 2.68 | 7.2 | 71.6 | Y132M-6 | 4 | 200 |
| 125SS-12 | 60 | 16.7 | 12 | 1440 | 3.1 | 7 | 65 | Y112M-4 | 4 | 160 |
| 125SS-21 | 100 | 27.8 | 21 | 1460 | 8.16 | 7 | 68 | Y160M-4 | 11 | 200 |
| 125SS-25 | 110 | 30.5 | 25 | 1460 | 10.69 | 7 | 70 | Y160L-4 | 15 | 200 |

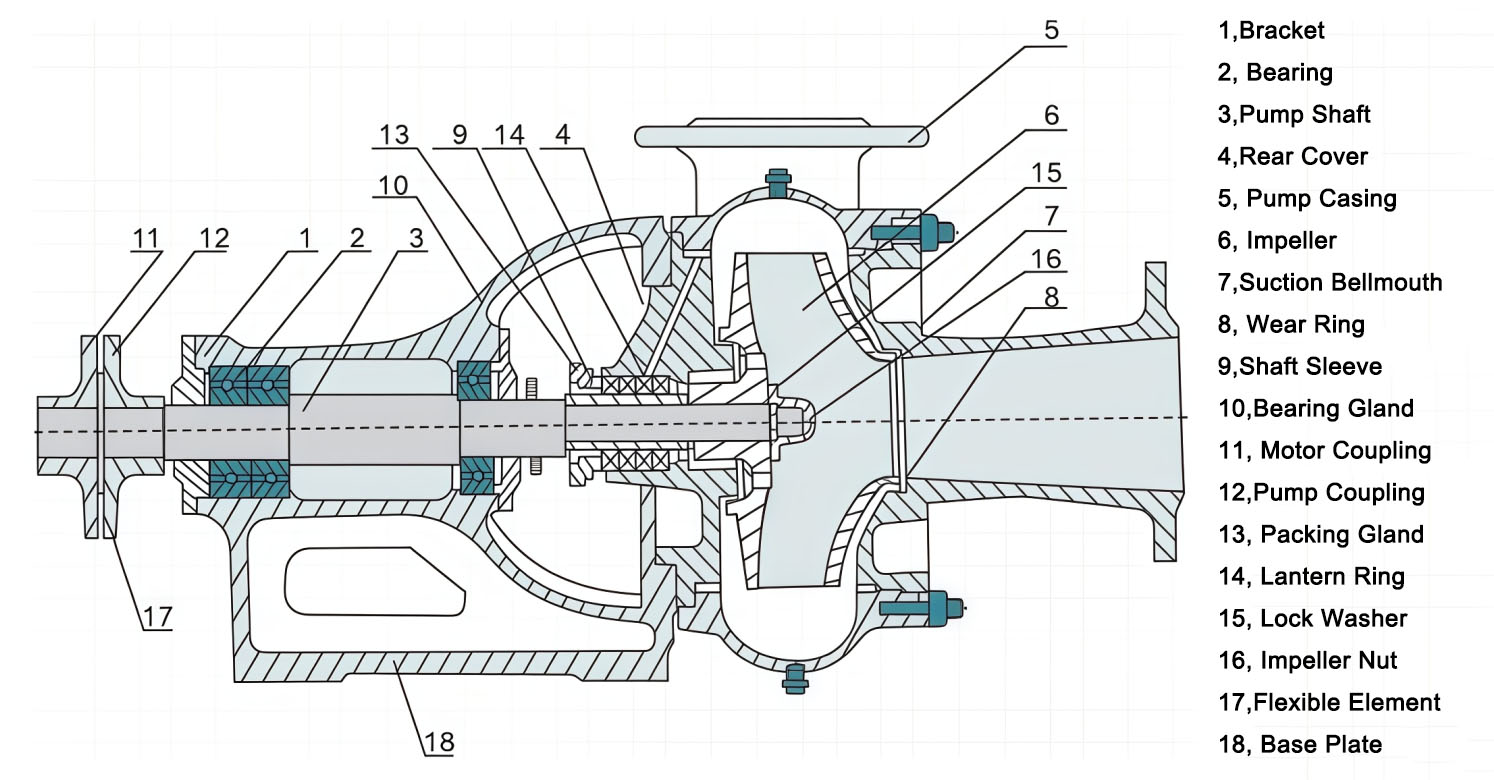

Structure Diagram
