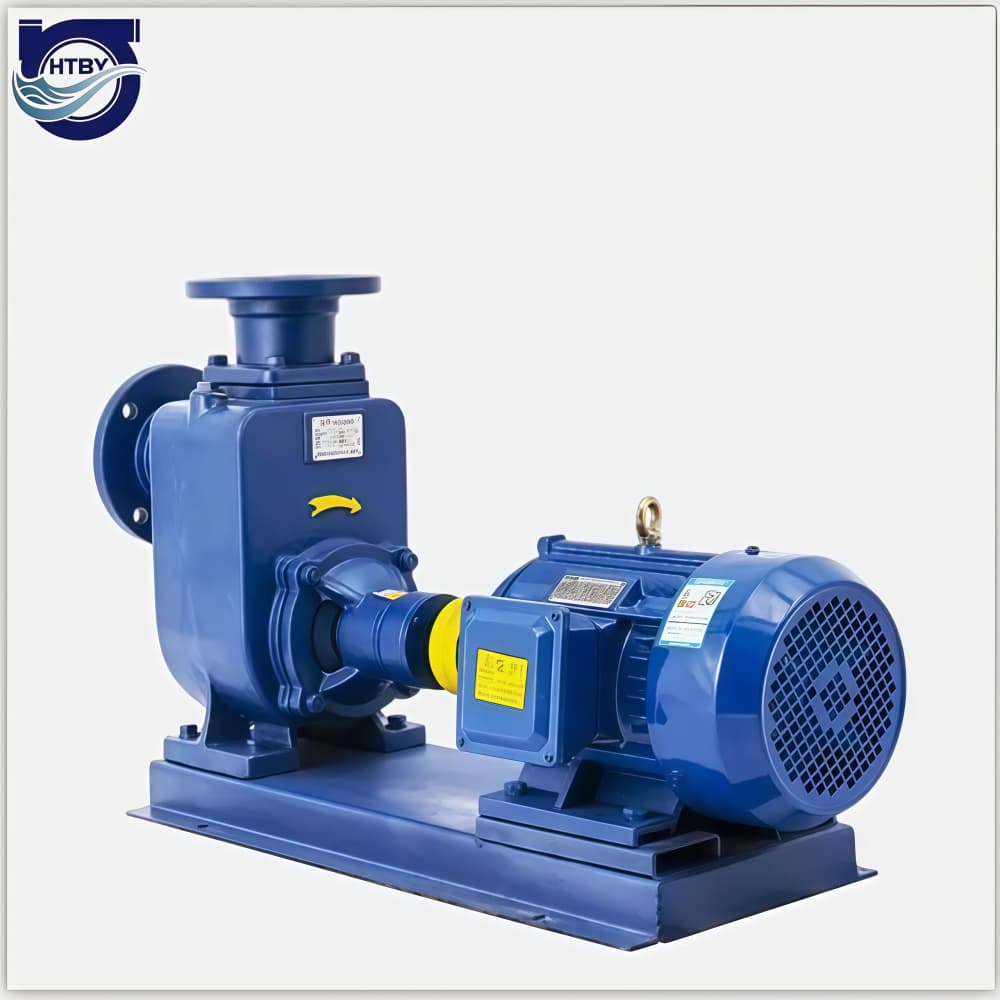

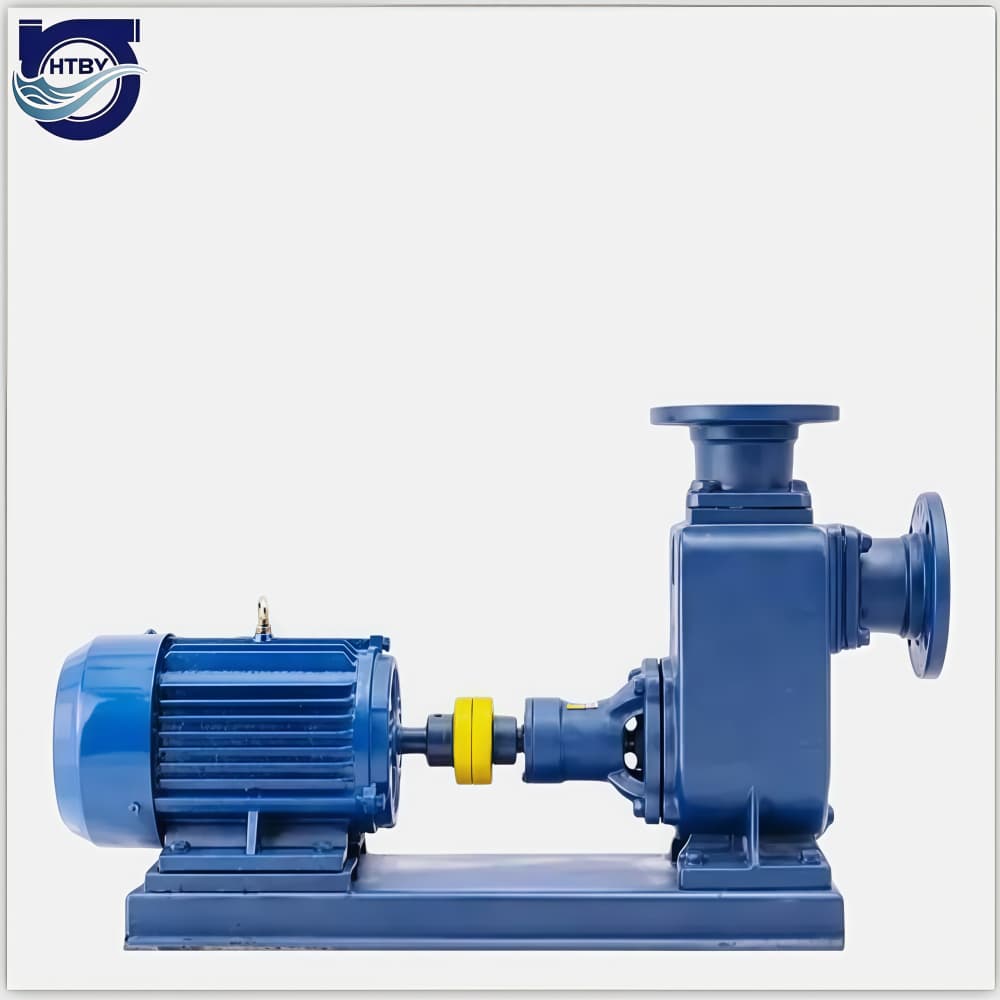

ZW Self-Priming Sewage Pump
ZW series self-priming sewage pump is newly developed after research on domestic and foreign similar pump technologies. It integrates self-priming and non-clog sewage drainage in one unit, requiring no foot valve or pre-filling water like conventional clean-water self-priming pumps. Sizes above DN50 can pump liquids with solid particles ≤30 mm and fibers up to 1.5 times the impeller diameter. It is the ideal impurity pump for media containing solid particles, fibers, slurry and mixed suspended solids.
Product details
Product Features
1.External recirculation mixed-flow self-priming structure with built-in liquid storage chamber, no foot valve or vacuum pump required; DN65 and larger sizes adopt open impeller for smooth flow and excellent anti-clog performance against fine impurities.
2.Simple structure, excellent self-priming performance, powerful solids passing capacity, high efficiency & energy saving and convenient maintenance.
3.Optional driving mode: electric motor or diesel engine (≥5 HP or ≥15 HP available); adjustable rotating speed 1500~2900 r/min with corresponding performance changes.
Main Application
Underground mine drainage, municipal sewage disposal, pond aquaculture, as well as wastewater conveyance for papermaking, textile, food, pharmaceutical, chemical and metallurgical industries.
Model Designation
For example:
Model: ZW 50 15-30 PB
ZW-Self-Priming Non-Clogging Sewage Pump
50-Suction Diameter (mm)
15-Rated flow (m3/h)
30-Rated head (m)
P-Stainless Steel (unmarked indicates Cast Iron Pump)
B-Explosion-Proof Motor (unmarked indicates Standard Motor）
More products
Explore our other digital solutions
HTAH, HTM, HTHH Slurry Pump
HTAH, HTM, HTHH Series – Cantilever Horizontal Centrifugal Slurry Pumps. Designed for highly abrasive, high-concentration slurries in metallurgy, mining, coal, power and building material industries. Suitable for multi-stage series connection. HTAH & HTM: Pump casing fitted with replaceable wear-resistant metallic or rubber liners; impeller available in wear-resistant metal or rubber. HTHH: Both casing liner and impeller are made entirely of wear-resistant metal. The discharge outlet can be adjusted to 8 different positions at 45° intervals as required.
S SH Split Case Pump
S/SH is horizontal single-stage double-suction split case centrifugal pump for clean water or medium with water-like properties; permissible medium temperature ≤80℃. Split casing enables overhaul without detaching inlet/outlet piping or motor; standard rotation is counterclockwise viewed from coupling side.
ZX Self-Priming Pump
The ZX self-priming sewage pump is characterized by stable performance, high operational reliability, high efficiency, low noise, compact structure, aesthetic appearance, and ease of installation and maintenance. As a new-generation energy-efficient product, it represents the most ideal option among current self-priming oil transfer pumps. The series is widely applicable in industries such as petroleum, chemical, pharmaceutical, environmental protection, urban construction, mining, transportation, and electric power.
