IH Chemical Pump
IH is axial-suction single-stage single-suction corrosion-resistant chemical centrifugal pump, for particle-free corrosive liquids with water-like viscosity, working temperature: -20℃~105℃.
Product details
Performance Range
Flow: 6.3–400 m³/h
Head: 5–125 m
Speed: 2900 r/min and 1450 r/min
Motor power: 0.55–90 kW
Suction diameter: 50–200 mm
Maximum working pressure: 1.6 MPa
Main Application
Petroleum, chemical, metallurgy, power, paper, food, pharmaceutical and synthetic fiber industries.
Model Designation
For example:
Model: IH 80-65-160-A----J
IH-Chemical Pump
80-Suction diameter (mm)
65-Discharge diameter (mm)
160-Nominal impeller diameter (mm)
A-Impeller trim grade
J-Reduced-speed pump

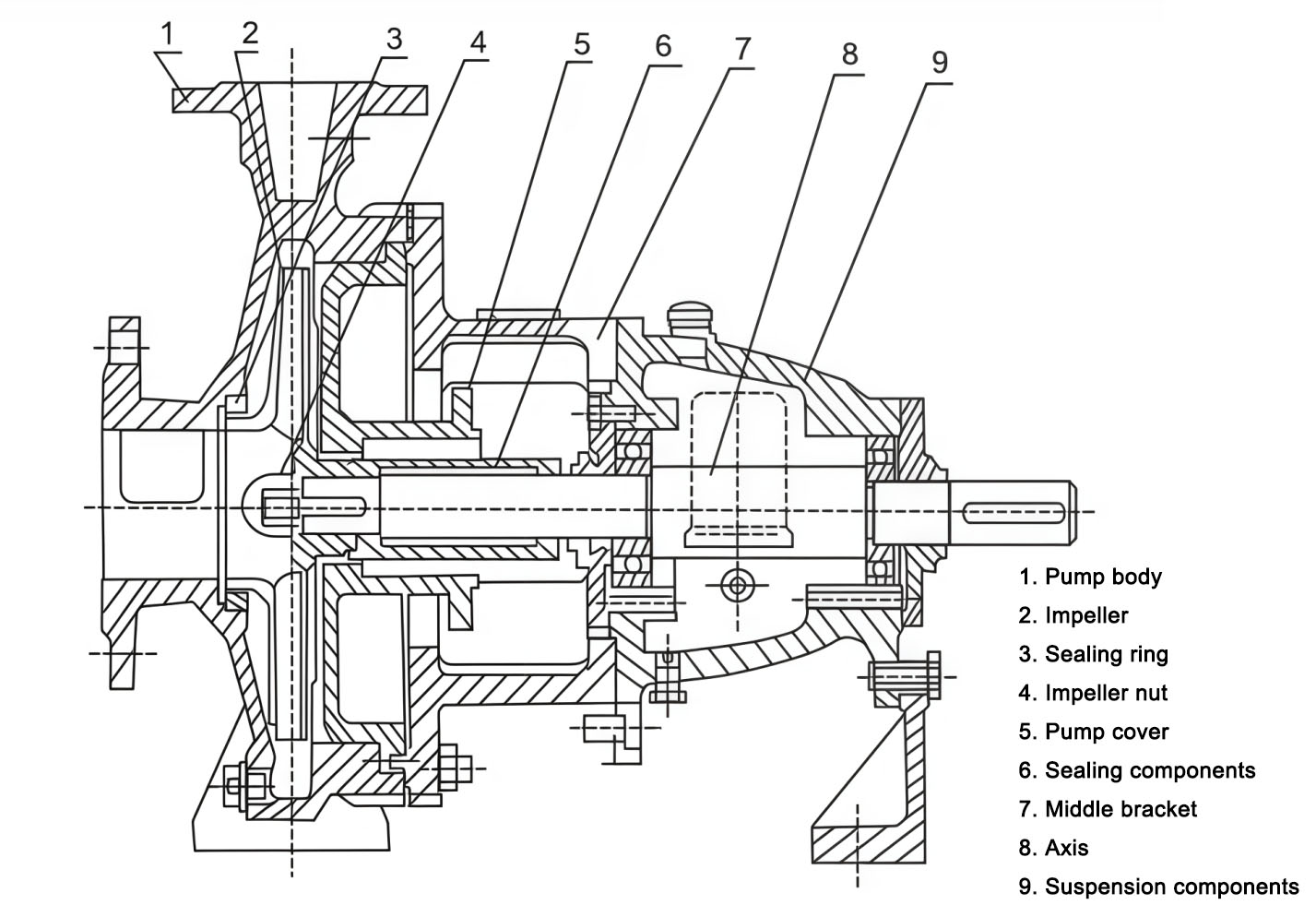

Structure Diagram
