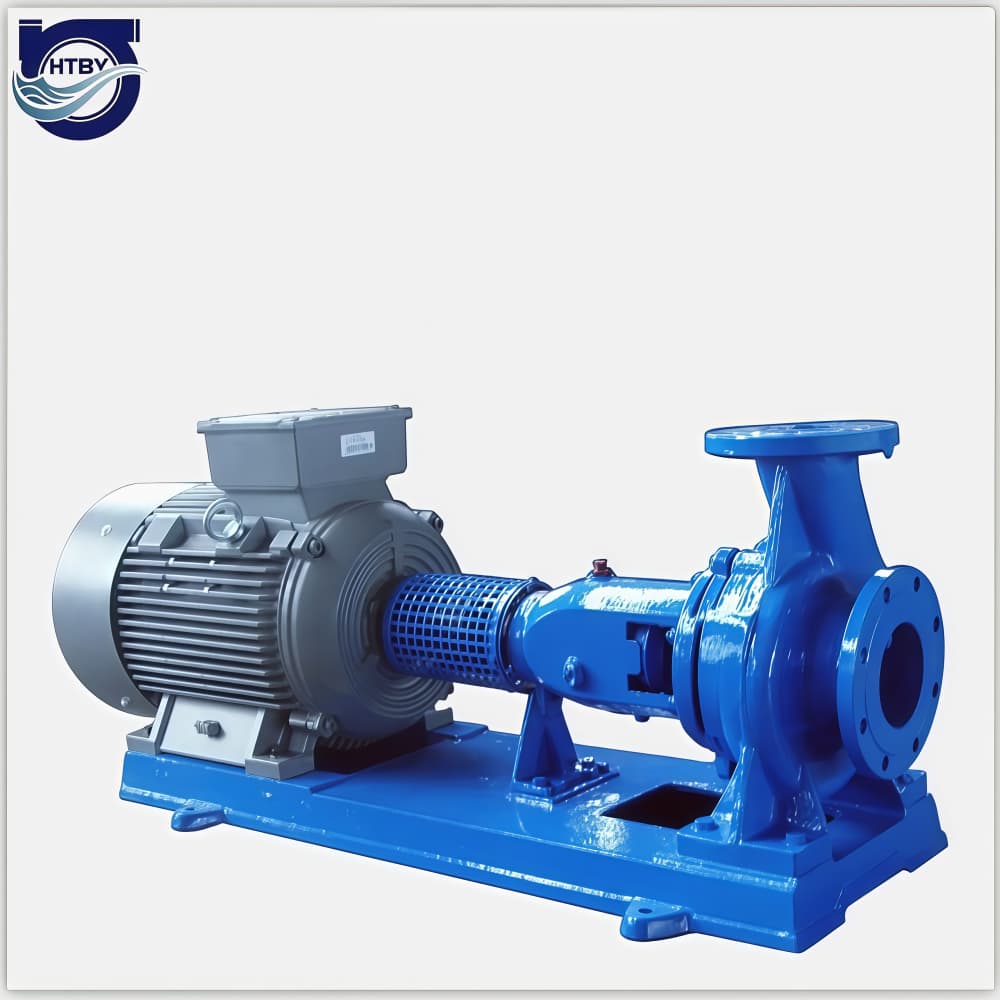

IS ISR Centrifugal Water Pump
IS ISR are single-stage single-suction centrifugal pumps for clean water and liquids with similar physicochemical properties. IS serves medium up to 80°C; ISR with high-temperature construction works up to 150°C for hot water service. The pump consists of casing working chamber, rotor (impeller, shaft, rolling bearings) and bracket bearing assembly. Axial thrust is balanced via impeller wear rings and balance holes; shaft is protected by shaft sleeve with O-ring, and shaft sealing adopts packing structure. The pump connects to motor via extended flexible coupling and rotates clockwise from drive end.
Product details
Product Features
1.ISR adopts centerline-supported casing to relieve thermal stress under high temperature; cooling chambers are arranged on bracket, cover and seal housing for water/air cooling.
2.Bearings adopt thin-oil lubrication with rated service life of around 25,000 hours for higher load capacity.
3.Shaft seal is available in packing seal or mechanical seal options.
Main Application
1.IS: industrial & municipal water supply/drainage, agricultural irrigation and drainage.
2.ISR: boiler feedwater, hot water circulating & HVAC systems. Widely applied in power, metallurgy, textile, chemical, printing & dyeing, ceramic, rubber and heating industries.
Model Designation
For example:
Model: IS（R）80-65-160 A ------J (D)
IS（R)-Single-Stage, Single-Suction Clear Water Centrifugal Pump (Hot Water Circulation Pump)
80-Suction diameter (mm)
65-Discharge diameter (mm)
160-Nominal impeller diameter (mm)
A-Impeller trim grade
J(D)-Reduced-speed pump

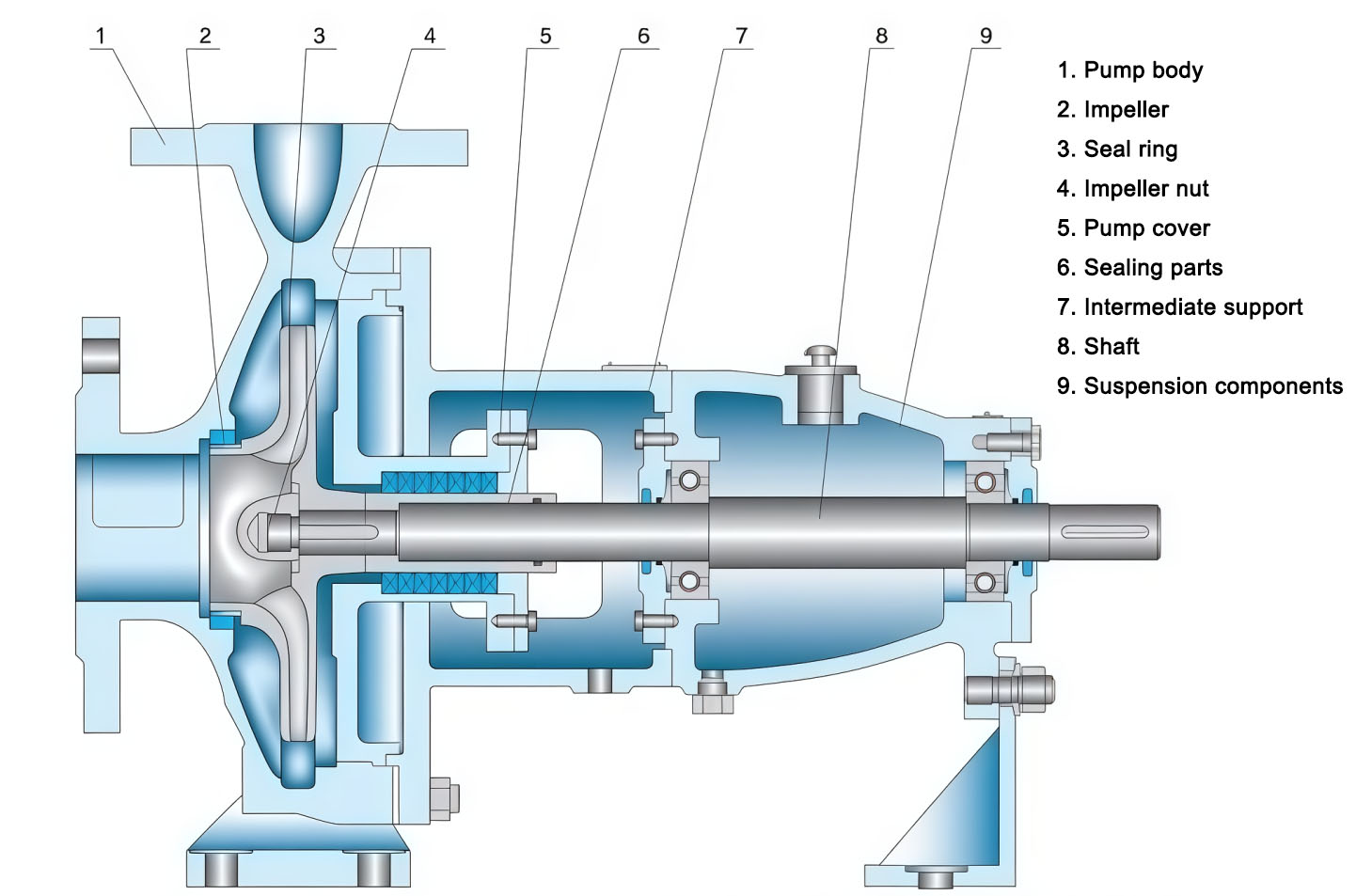

IS Centrifugal Water Pump Structure Diagram
