Main Application
Primarily for circulating sponge rubber balls in condenser cleaning of thermal power plants; also applicable for sewage and low-abrasion solid-containing mixed liquid transportation.

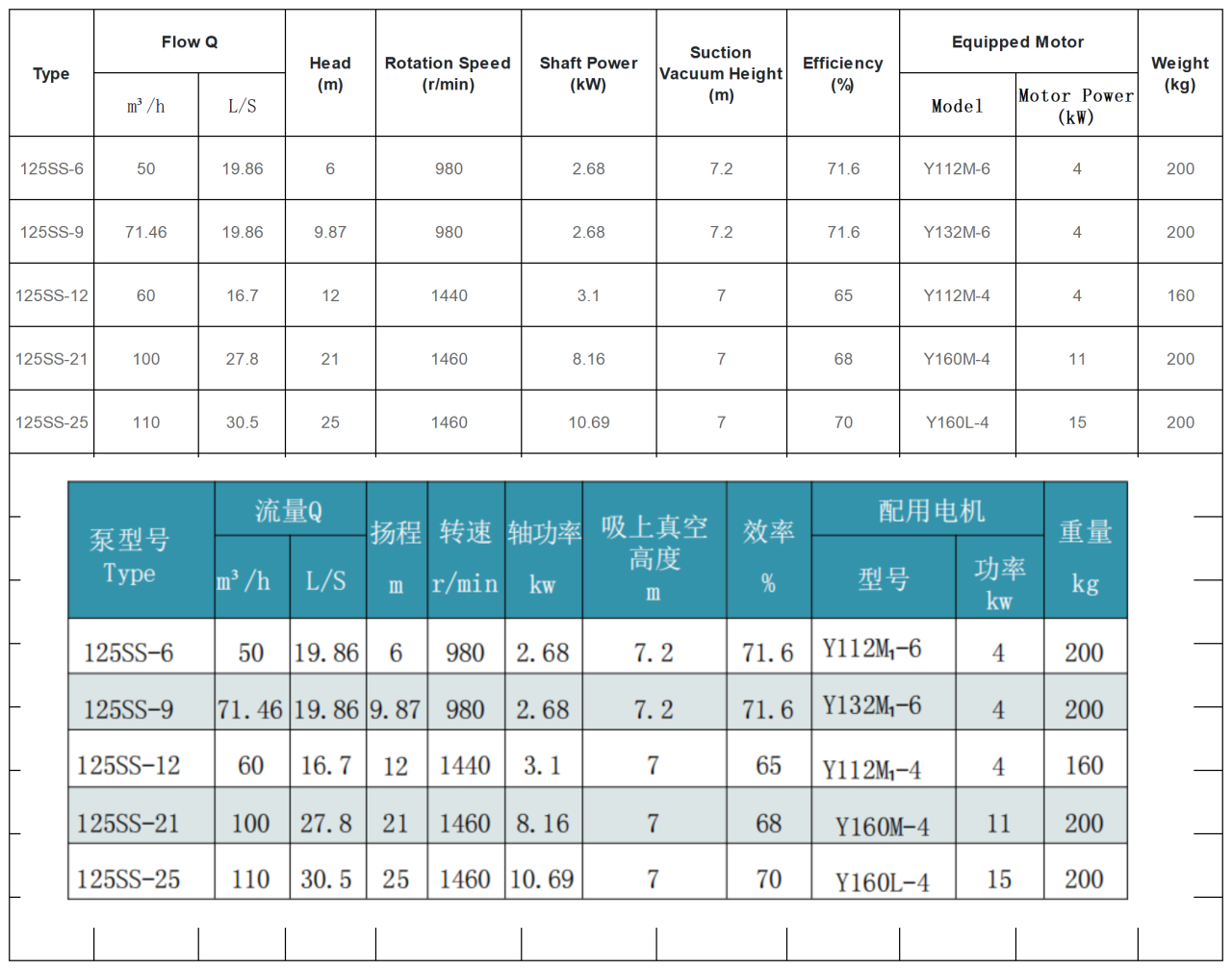

Performance Chart

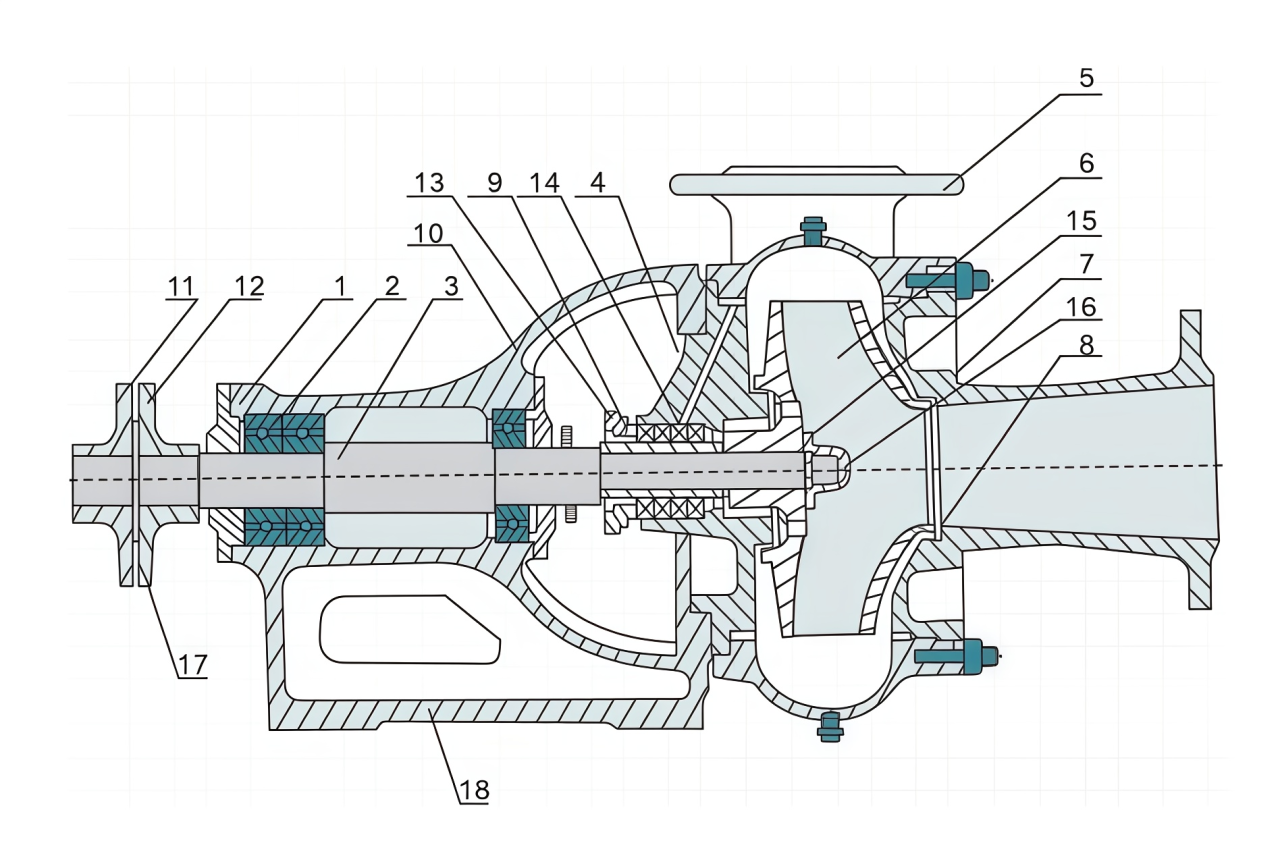

Structure Diagram
1,Bracket
2, Bearing
3,Pump Shaft
4,Rear Cover
5, Pump Casing
6, Impeller
7,Suction Bellmouth
8, Wear Ring
9,Shaft Sleeve
10,Bearing Gland
11, Motor Coupling
12,Pump Coupling
13, Packing Gland
14, Lantern Ring
15, Lock Washer
16, Impeller Nut
17,Flexible Element
18, Base Plate
