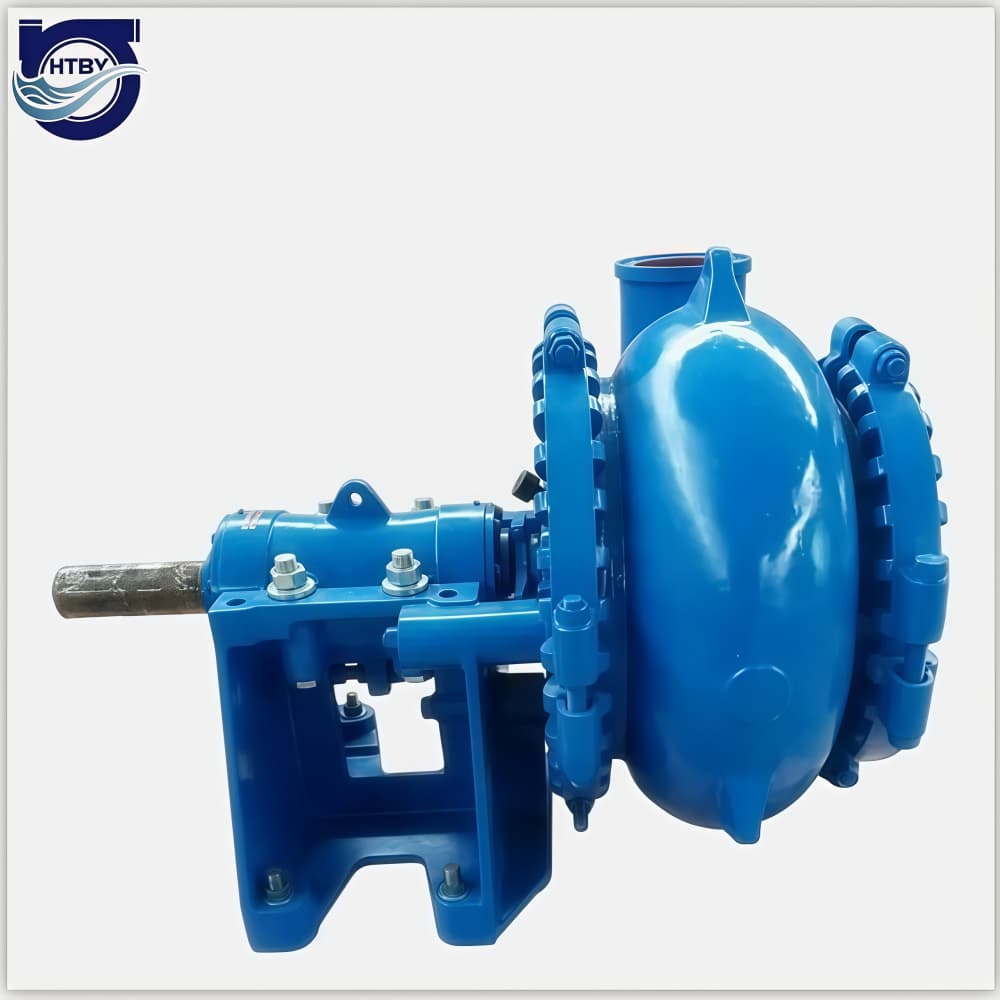

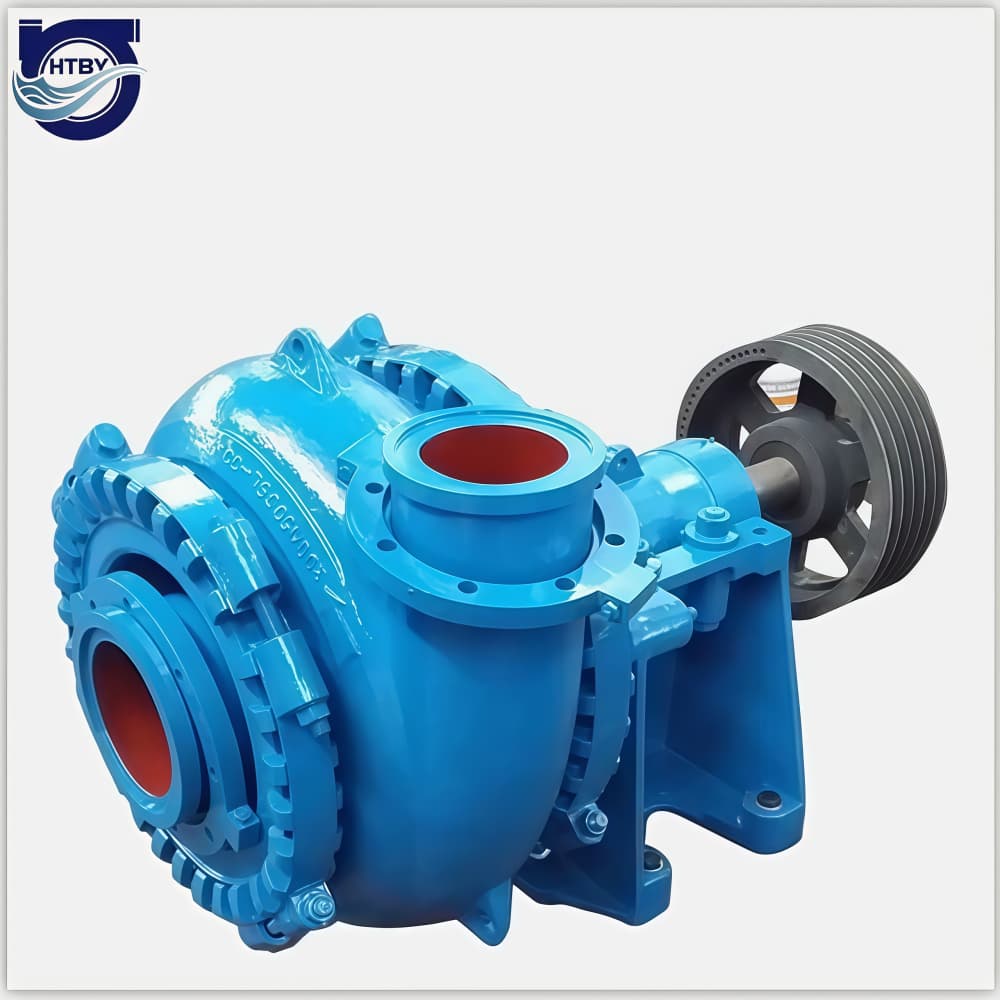

G GH Gravel Pump
G/GH heavy-duty gravel pumps are developed for highly abrasive media with oversized solid particles beyond standard slurry pump capacity. GH features high-head design; applicable for dredging, river sand extraction, mining and smelting slag delivery, supporting VFD and SCR speed regulation for various working scenarios.
Product details
Product Features
1.Wide flow passage delivers outstanding anti-cavitation performance and high efficiency.
2.Single casing fixed by clamp bands; discharge outlet adjustable at any 360° angle for flexible mounting.
3.Wetted parts adopt Ni-hard & high-chromium wear-resistant alloys for long service life.
4.Optional shaft seals: packing, expeller and mechanical seal.
5.Multiple drive selections: V-belt, flexible coupling, gear reducer, hydraulic coupling, VFD and SCR speed control.
Main Application
G/GH gravel pumps serve mining, coal washing, power, metallurgy, petrochemical, construction and dredging for oversized abrasive slurry, river sand and smelting slag conveyance.
Model Designation
For example:
Model: 6/4-G/GH
6-Suction diameter (inch)
4-Discharge diameter (inch)
D-Frame type
G-Gravel pump
GH-High head gravel pump

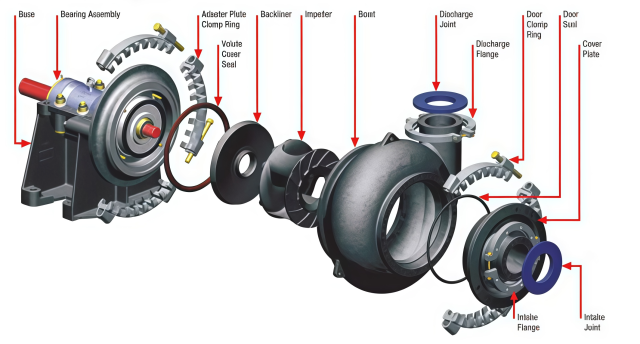

Structure Diagram
