PN Mud Pump

Product Features

1.Wetted wear components adopt wear-resistant cast iron for extended service life.

2.Clearance between impeller and liner is adjustable to sustain high working efficiency.

3.For sizes ≥4 inch, bearings are mounted inside horizontally split bracket for easy disassembly and adjustment; serpentine water cooling coil fitted inside oil sump to optimize bearing operating environment.

4.Models above 8 inch adopt streamlined volute design for convenient dismantling and maintenance.

Main Application

Designed for solid-liquid two-phase slurry transportation with maximum solid concentration up to 50~60% by weight. Widely used in mineral sand conveying for mining, as well as slurry handling in construction material, papermaking, food and feed industries.

Model Designation

For example:

Model: 2 PN

2- Discharge diameter

P- Impurity pump

N- Mud

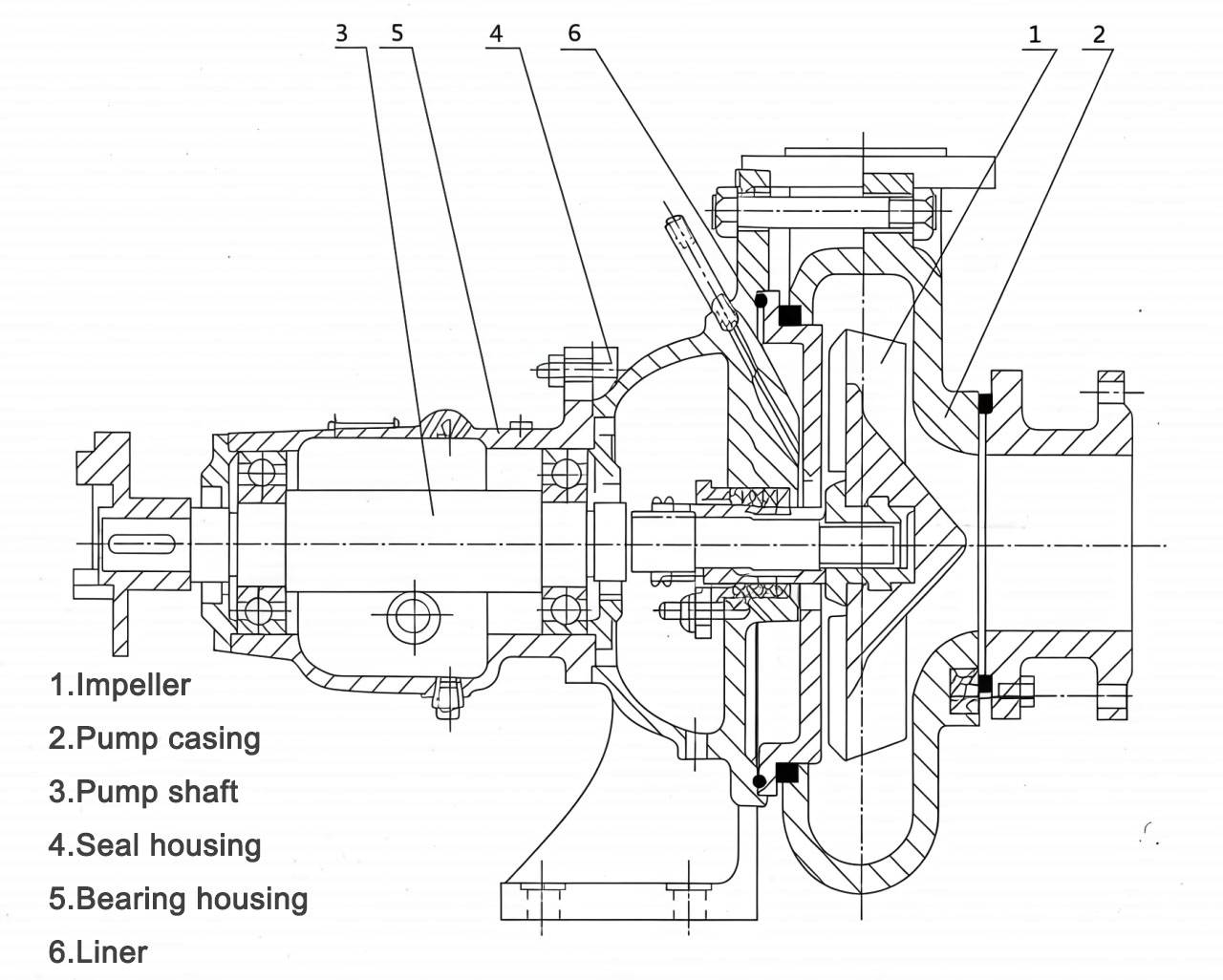

1PN, 2PN, 3PN Mud Pump Structure Diagram
