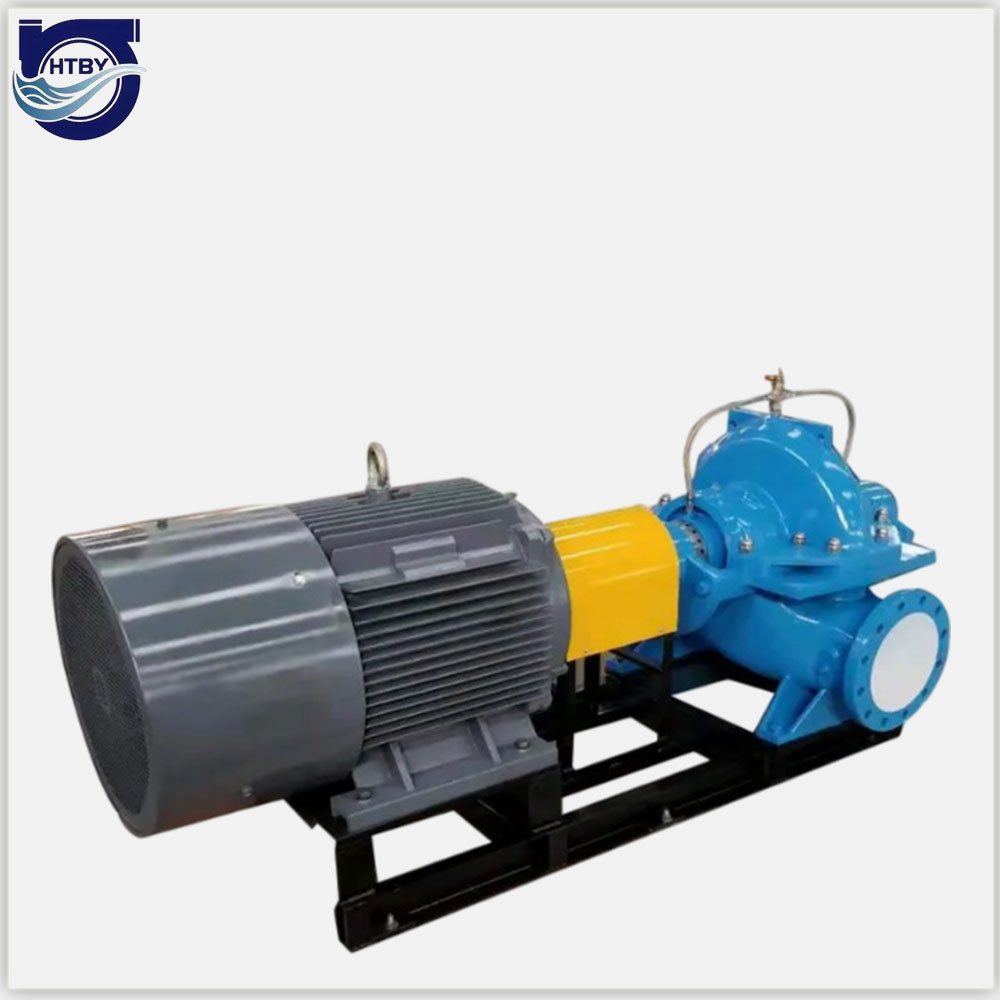

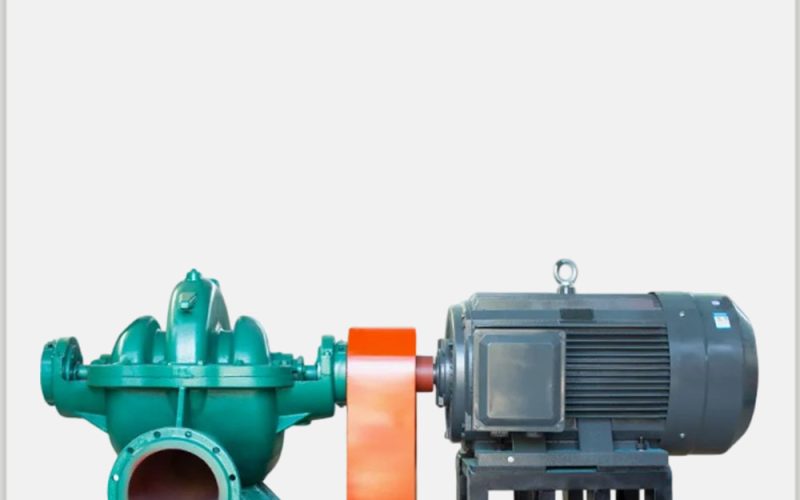

Product Features
1.Large flow rate and high hydraulic efficiency.
2.Split-case design simplifies inspection and maintenance; pump casing service life ≥30 years, max casing pressure up to 10MPa.
3.Inlet & outlet orientation customizable as required.
4.Wetted parts optional cast iron, cast steel or stainless steel (SS304/SS410); packing seal and mechanical seal are both available.
5.Symmetrical double-suction impeller balances most axial thrust; residual axial load absorbed by end bearings, grease-lubricated bearing arrangement ensures stable running.
Main Application
Widely used for water supply & drainage in power plants, mines, urban construction and coal industry, plus farmland irrigation, flood drainage and various hydraulic projects.
Model Designation
For example:
Model：150-S-78-A(or B / 1)
150-Suction diameter 150 (mm)
S-Horizontal double-suction centrifugal pump
78-Head 78 (m)
A–First trim (impeller diameter reduced for first time)
B-Second trim (impeller diameter reduced for second time)
1-First increase (impeller diameter enlarged for first time)
Structure Diagram
1,Casing
2,Casing cover
3,Impeller
4,Shaft
5,Double suction seal ring
6,Shaft sleeve
7,Packing sleeve
8,Packing
9,Packing ring
10,Water Seal Pipe
11,Packing Gland
12,Shaft Sleeve Nut
13,Lock Nut
14,Bearing housing
15,Bearing housing gland
16,Single-Row Radial Ball Bearing
17,Round Nut
18,Coupling assembly
19,Bearing Spacer Sleeve
20,Bearing end cap
21,Key
22,Double-Ended Stud
